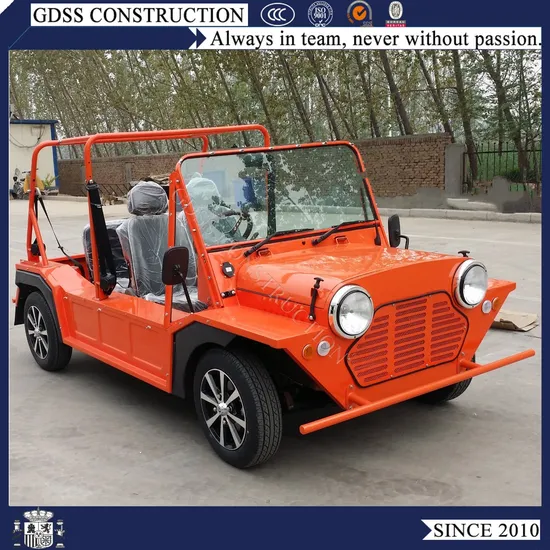

Lithium Battery Electric Car Golf Mini Moke

Product Description

Company
Product Parameters Lithium battery mini moke

Measurement Parameter
Drive type	LHD
Dimensions (LxWxH)	3290*1530*1500 mm
Wheelbase	2120 mm
Wheel track front/rear	1280mm/1280mm
Ground clearance	180mm
Max climbing ability	30°
Curb weight	430Kg
Full load	960Kg
Range	150Kms
Seats	4
Electric motor	Motor model: GLMI10A1 Motor power (rated/peak): 10 KW/22 KW Motor rpm (rated/max): 3500/7000 r/min Motor rated voltage: 96 V Insulation class: H Protection class: IP65 Motor controller: GLCI6008A2
Battery	Brand: CATL (battery supplier of Tesla) Rated capacity: 166AH Battery pack rated voltage: 96V Total energy: 16.5 KWH Max continuous charge current: 120A Max continuous discharge current: 145.6A Peak discharge current: 250A (Protected to 250 A) Standard voltage: 103.6V MAX voltage: 116V Battery pack weight: 131.2kgs Battery cell model: 18650 Battery core type: Ternary lithium battery Battery working temperature: -20°------60 ° Battery pack cooling method: Natural cooling Excess voltage protection: 4.15V Under voltage protection: 2.8V System self-discharge rate: Keep 95% at 25 days, 25°C IP rated: IP67
Max.speed	70 (Km/h)
Drive type	Front/Front
Chassis and other parameters
Steering system	Gear rack mechanical steering
Brake system	Front disc/ Rear disc
Handbrake	Electronic handbrake
Dashboard	Aluminum dashboard
Suspension system (F/R)	(Front)double wishbone independent suspension, (rear) after trailing arm type independent suspension
Gearbox type	Two-speed transmission, Transmission ratio: 6.7:1 (low speed); 12:1 (high speed).
Tire	155/65R13
Body color	Red, Yellow, Black, Blue, White, Green

Detailed Photos
Packaging & Shipping
Certificate
Customer Feedback
FAQ
1) What's the MOQ?
--3 units. But we can put 4 units into a 20ft container, so that we can have a lower shipping freight for each unit.
2) The transmission, what do you have?
-- We have manual transmission for gasoline model and automatic transmission for electric model.
3) Steering wheel assist system, can you install it for us?
-- Yes we can install it for you if you want, and only $350 charges for it.
4) If we want to be your sole agent in our market, what will you do to help us?
-- First you make the initial order to do the marketing, we will provide you a three-months protection. Then we can come to the agreement.
5) Can it be ok for Europe market?
-- Definately yes, we have got EEC certificate with COC document for registration.
6) We are a right hand drive country, can you make it?
-- Yes, both RHD and LHD available. Welcome to pay a visit to us

---
