4h Turret Milling Machine Machine Tools Universal Milling Machine Vertical Milling Machine

Product Description

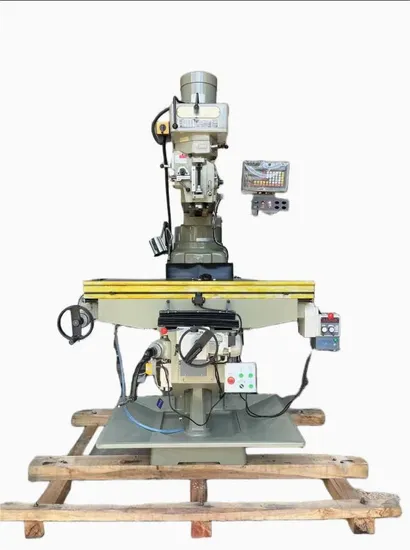

4h Turret Milling Machine Machine Tools Universal Milling Machine Vertical Milling Machine X6325
Product Description
Structural characteristics1. Base, fuselage, workbench, middle slide seat, lifting slide seat and other main components are cast with high strength materials.
And by artificial aging treatment, to ensure the long-term stability of the machine tool.
2, the milling head is equipped with turret milling head, and the main shaft is equipped with manual and micro feeding methods, convenient and accurate processing;
The milling head can be adjusted ±45° in the vertical plane and 360° in the horizontal plane to expand the machining range of the machine.
3. There are three kinds of manual feed, mobile feed and mobile fast feed on the vertical and horizontal table. The mobile feed can obtain 8 different feed speeds.
Can meet different processing requirements; The fast feed allows the workpiece to reach the machining position quickly and shortens the non-machining time.
4, lifting platform Z-lifting can be achieved by manual and maneuvering two ways, and manual and maneuvering are interlocked, eliminating unsafe factors.
5, the table X direction travel up to 800mm, and X, Y, Z three direction guide pair by ultra-audio quenching, precision grinding and scraping treatment,
Improve the accuracy and prolong the service life of the machine.
6. The manual lubrication device can force the longitudinal, horizontal and vertical lead screw and guide rail to lubricate, reduce the wear of the machine tool and ensure the efficient operation of the machine tool;
At the same time, the cooling system changes the size of the coolant flow by adjusting the nozzle to meet different processing needs.
7. The machine tool operating system is suspended on the upper right side of the machine tool through the support arm, which is ergonomic and easy to operate;
The operation panel is designed with figurative symbols, which is simple and intuitive.
8, turret milling machine spindle can be selected R8.NT30\NT40,
9, equipped with improved electrical box and controller, with 110V,220V output socket.
Product Parameters

Product Name
Product Name	Milling machine
Product model	4H
Product technical parameters
dimension	Table size	1270*254MM
journey	Left and right stroke(X)	760MM
	Anteroposterior stroke(Y)	380MM
	Up and down stroke(Z)	380MM
	Arm reach	520MM
	Distance from spindle end face to table surface	50-410MM
Principal axis coefficient	Spindle taper	R8/NT30
	Spindle speed	80-5440RPM(16-speed)
	Spindle travel	127MM
	Spindle horse power	3HP
Milling head	Milling head tilt Angle	45° fore-and-aft
Machine profile dimensions	T-slot (Number * Size * Spacing)	3-15.88*75MM
	Machine size (L * W * H)(MM)	1750*1700*2200MM
	Approximate machine weight	1280kgs
The configuration is as follows	Accessories name and specification	quantity
Standard parts for machine tools	1,Hand oil pump	1
	2,Work light	1
	3,Organ board + protective glue	1
	4,Lever	1
	5,Tools and toolboxes	1
	6,Operating instruction	1
Special parts for machine tools	7,Two axis electronic ruler	1
	8, X-axis automatic feed	1
	9, 6 "flat pliers	1
	10.Clamp plate	1
	11, R8/NT30 chuck	1

Detailed Photos

Packaging & Shipping
Professional Team
FAQ
1. What are the Payment Terms?
A: We accept T/T payments, requiring a 40% initial deposit upon ordering and the remaining 60% balance to be paid before shipment. This payment structure ensures a smooth transaction and timely processing of your order.
2. What are your trade terms?
A: We offer flexible trade terms including FOB, CFR, and CIF, giving you the freedom to choose the option that best suits your logistical needs and preferences.
3. When is the delivery time?
A: For our standard Vertical CNC Drilling Machine Center, we guarantee delivery within 30 days. For custom or specialized machines, additional time may be required. Please align your order placement with our provided delivery schedule to ensure timely receipt.
4. What is your minimum order quantity and warranty?
A: Our minimum order quantity is one set, ensuring accessibility for all customers. We also offer a comprehensive one-year warranty, reflecting our commitment to quality and customer satisfaction.
5. How are the machines packaged?
A: Each machine is meticulously packed in a robust wooden case, guaranteeing it arrives in pristine condition, ready for immediate use upon receipt.
6. How can I choose the most suitable machines?
A: Provide us with your specific requirements, and we will recommend the most suitable model tailored to your needs. Alternatively, you may select your desired model directly from our extensive range of options.
Alternatively, you can send us your product drawings, and we will identify the ideal machine configuration for your specific applications, ensuring optimal performance and efficiency.

---
