Edgebander Curve Edge Banding Trimmer Machine with Automatic Cabinet Curve Line PVC MDF

Product Description

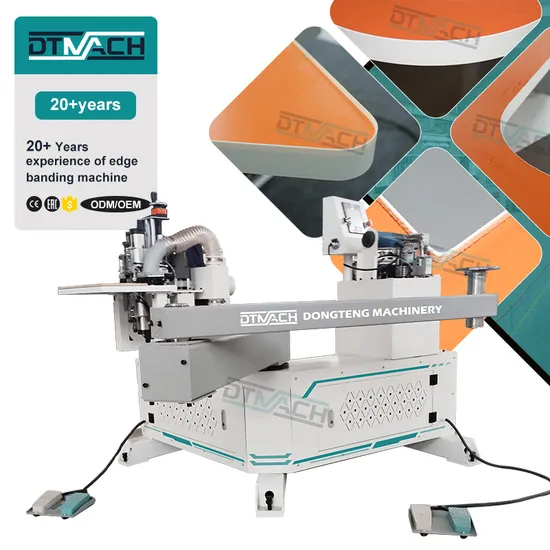

DT-680 automatic curve edge banding machine features: 1.It have two functions, edge banding and edge trimming.
2.It has heating device, avoid hot melt adhesive cooling fast non-stick board.
3.About secondary auxiliary pressing, the edge banding strip and the plate are pressed twice, increase bond strength.
4.It has cleaning device, can spray clear glue on the surface of board
5.One-click switch between Chinese and English, it is possible to store data on 5 types of plates.

Power supply voltage	220V/50HZ
Total power	5.1kw
Air pressure	0.6-0.8Mpa
Capacity	1200ml
Width of edging	8-50mm
Rubber pot temperature	130ºC-180ºC
Hot Melt Adhesive Type	EVA
Edge banding speed	0-18cm/s
Edge banding thickness	0.4-2mm (related to edge banding material)
Trimming sheet thickness	<14mm single-sided trimming, 14-70mm upper and Iower double trimming (relatedto timming knves)
Inner arc radius	(sealable radius for special operation 4mm)
Air flow	9800m³/h
Trimming speed	0-24cm/s
Types of edging	PVC, veneer (needs to be customized), plastic, melamine, etc
Weight	350kg
Packing size	180X135X139cm(half wooden box) 182X137X148(full wooden box)

Detailed Photos
Product Display
Company Profile
Certifications
Packaging & Shipping
FAQ
Q1: I want a edge banding machine , can you give me some suggestions ?
A : Sure, we will give recommend of the most suitable machine. Before that, we need to know some information, such as board thickness, strips material, local voltage etc .
Q2: Which kind of materials can be processed on this machine?
A : PVC, melamine, plastic and other materials.
Q3: Are you a factory or trading company ?
A: We are the manufacturer for 20 years. You can fully trust the machines we produce . Most importantly, we will provide you with the most thoughtful and best after - sales service.
Q4: How should I pay for my order?
A: Pay 50% as prepayment as first, then we will start to make production. When the machine is completed, we will send pictures or videos to you, and then you need to pay the balance. We will ship the machine to you after we receive your full payment .
Q5: How long is the delivery time ?
A : For standard machines, it will be 12-15 days . For customization, it will be 15-30 days .

---
