Manufacture Price/PC Wire/Plain/High Carbon/High Strength/4.00mm/ GB/T 5223-2014

Product Description

Product Description Introduction of Characters

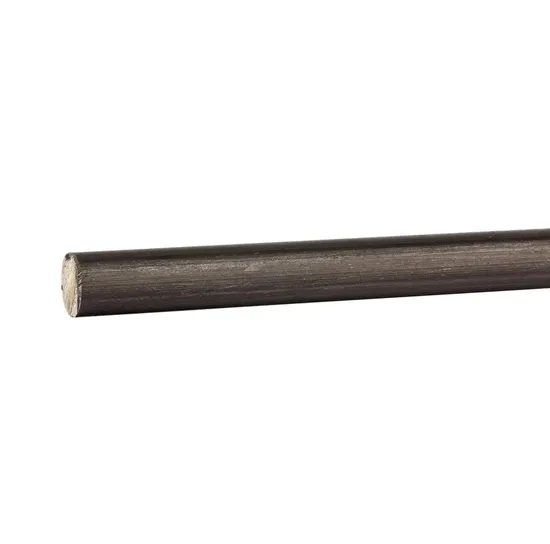

Pre-stressing Plain Steel bars/Prestressed regular steel bars, also known as prestressed steel bars or high-strength steel bars, which are used in constructions to increase the strength and durability of concrete structures. Made from high-carbon steel, these bars of high-tensile, low-relaxation, smooth are specifically designed to withstand the tensile forces exerted on concrete. The prestressing process involves applying compression to the concrete before it is subjected to the more common tension forces. This is usually done by embedding prestressed steel bars in concrete and then stretching and anchoring them at both ends. This process puts the concrete in a state of compression, which helps offset the tensile forces the structure will experience over its lifetime. Prestressed plain steel bars are available in various diameters and strengths to meet different construction requirements in compliance with PrEN10138-2:2009,BS5896:2012,ABNT NBR 7482:2008, etc. It is important to consult with a structural engineer or construction professional to determine the specific requirements for prestressed plain steel reinforcement in a project because the
design and implementation of prestressed systems requires specialized knowledge and expertise.
ltem Description
Pre-stressing Steel bars, in compliance with PrEN10138-2:2009,BS5896:2012,ABNT NBR 7482:2008, etc.
high-carbon, smooth, cut to length, in packages with weight approx.1250kg with maritime package;
Diameter: 3.0mm - 11.0mm;
Length: as required (+2/-0 mm);
Tensile Strength: 1470MPa. - 1860 MPa.
Applications
They are frequently used in the construction of bridges, high-rise buildings, parking lots, railway sleepers, the PHC concrete pilings/tubes and other large, complex concrete structures, etc.
Advantageous
By introducing prestressed ordinary steel bars into concrete construction members,the overall material usage can be reduced, cracks can be minimized or disappeared, spans can be increased, structural stability can be enhanced, and the overall load-bearing capacity of the structure can be improved.
To sum up, prestressed ordinary steel bars, or prestressed ordinary steel bars, are basic elements in the construction and engineering of reinforced concrete structures.
These steel bars play a key role in improving the performance and longevity of a wide range of civil and construction projects by introducing tension into the steel before it is embedded in concrete.
Product Parameters

PLAIN WIRE
Nominal Dia.(mm)	Tensile Strength (MPa)	Relaxation (1000h)	Min. Elongation at Max. Load	Standards
3.0, 4.0, 5.0, 6.0, 7.0, 7.5, 8.0, 9.0, 10.0, 11.0, 12.0	1470,1570,1670,1770,1860	Low relaxation≤2.5%	Agt≥3.5%	GB/T5223, ASTMA421, BS5896

Certifications Company Profile
Our Advantages
FAQ Q: Are you a trading company or manufacturer?
A: We are a MANUFACTURER.
Q: How are the PRICES of your products?
A: Because we are a private company, the prices of our products are usually COMPETETIVE and FLEXIBLE according to the number of orders and customer needs. We endeavor to keep our prices reasonable and provide quality products and services to meet our customers' needs and budgets.
Q: Are your products CERTIFIED or INSPECTED?
A: Yes, our products are usually certified by international certification bodies or inspected by third-party inspection organisations, such as CE certification, ISO 9001 quality management system certification, etc. These certifications and inspections prove the quality and compliance of our products.
Q: Do you offer CUSTOMISED SERVICE for your products?
A: We can provide customized products according to customers' needs. Whether it is the specification, material or packaging, we can adjust and customize to meet the specific requirements of our customers to meet their particular needs.
Q: What kind of payment does your company support?
A: T/T, L/C at sight, Cash, Western Union, and other negotiable payment methods.

---
