Nadun Vtc75 Advanced CNC Vertical Turret Turning Lathe for Spare Parts Making

Product Description

Nadun VTC75 Advanced CNC Vertical Turret Turning Lathe with Precision Engineering and Cutting Edge Technology Product Description
This CNC Vertical Lathe features:
1. The base, column, and slide are made of high-grade gray cast iron for strength and long-term accuracy stability.
2. Utilizes a roller-type linear guide for ultra-high rigidity and heavy load capacity, improving positioning accuracy and load-bearing capacity.
3. The servo main motor connects to the spindle through a synchronous toothed belt, ensuring repetitive positioning accuracy with stepless speed control for various machining requirements.
4. Longitudinal and transverse feeds are controlled by high-power servo motors, with a load balancing mechanism in the longitudinal feed to extend the screw's life cycle.
5. Support at both ends of the ball screws uses imported double-row bearings, ensuring machining accuracy.
6. Features an adjustable electric lubrication pump for intermittent automatic lubrication, ensuring precision in all moving parts.
7. The tool holder adopts a multi-station CNC tool holder for one-time clamping, reducing tool change time and improving work efficiency.
8. The spindle offers customization options such as a rotary table or hydraulic chuck at the upper end, and a rotary oil cylinder (single-piston or double-piston) at the lower end for versatile workholding capabilities.

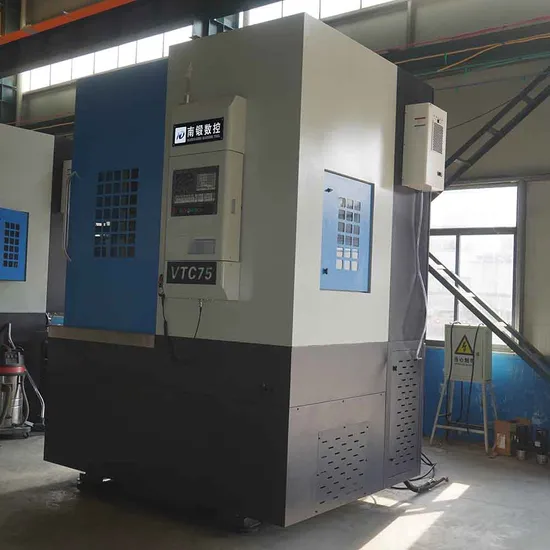

Detailed Photos
Product Parameters

Project	Specification	Unit	VT45	VT65	VT75
Machining Capacity	Max. Turning Diameter	mm	∮560	∮650	∮750
	Max. Cutting Diameter	mm	∮450	∮600	∮700
Spindle	Spindle Face Type		Straight	Straight	Straight
	Spindle Speed	rpm	100-2000	100-1000	100-1000
	Chuck Diameter	mm	500	500	610
Tool Magazine	Tool Capacity	pc	Horizontal 8	Horizontal 8	Horizontal 8
Travel	X-Axis Travel	mm	400	420	700
	Z-Axis Travel	mm	500	500	700
Hydraulic Unit	Oil Tank Capacity	L	40	40	40
	Hydraulic Motor Power	kW	2	2	2
Motor	Spindle Servo Motor Power	kW	15	19	22
Accuracy	Repeated Positioning	mm	±0.008	±0.005	±0.005
	Positioning Accuracy	mm	±0.008	±0.008	±0.008
Machine Dimensions	Length * Width * Height	mm	2200*2300*2600	2150*2210*2970	2700*2100*3200
	Weight (with Accessories)	kg	5000	7000	9500
Power Requirements	Power Supply	3¢-AC 380V 50HZ±5%
	Leakage protection, power failure protection	√
	Three-color indicator for machine status	√
	Long-term stable operation under the following conditions	Ambient temperature 5~38°
		Ambient humidity<85%
	Machine noise meets national standards	√

Hot Sales Products
Packaging & Shipping
Why Choose Us?
FAQ
1. What products does Nadun Machinery Manufacture Co., Ltd. specialize in? - We specialize in the production of hydraulic presses, punch presses, shearing machines, bending machines, and other machinery.2. In which industries are Nadun Machinery's products commonly used? - Our products are widely used in various industries such as automobile manufacturing, home appliances, and hardware processing.3. What sets Nadun Machinery apart from other manufacturers? - We have a team of experienced professionals dedicated to excellence, a strong research and development team for continuous innovation, and products known for high quality, excellent performance, and long service life.4. How does Nadun Machinery ensure the quality of its products? - We have strict quality control procedures in place to ensure that each product meets or exceeds our customers' expectations.5. Does Nadun Machinery offer customized solutions? - Yes, we offer customized solutions to meet specific customer requirements.6. How is customer success prioritized at Nadun Machinery? - We believe our success is closely tied to our customers' success. We work hard to build strong relationships, offering support and guidance to help customers achieve their goals.7. How can I get more information about Nadun Machinery's products and services? - If you are interested in learning more about our products or services, please feel free to contact us. We look forward to the opportunity to work with you and provide the best solutions for your needs.

---
