Chinese Tablet Hardness Tester in Laboratory for Pharmaceutical Industry

Product Description

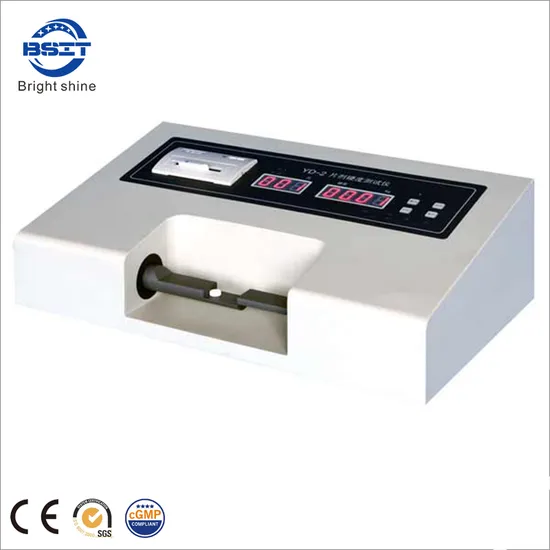

YD-1/YD-2/YD-3 TABELT HARDNESS TESTER
Product Description Tablet hardness testers are the instruments for detecting breaking hardness of tablet.

Applicable standard
Corporate standard (tablet hardness tester) Q/12XQ0186-2010

Features Manual Loading and Automatic Pressing: Tablets are loaded manually, and the device automatically applies pressure to test hardness. High-Accuracy Press Sensor: Equipped with a precise press sensor, the hardness data is accurately displayed on an LED screen. Continuous Testing Capability: The device can continuously test up to 100 tablets in one batch, ensuring efficient processing. Efficient Measurement: The device directly measures the diameter of the tablets, saving time during the testing process. Automatic Data Handling: Test data is displayed and locked automatically, allowing for easy resetting and cycling of tests. The system can print out detailed data, including the hardness of each tablet, maximum value, minimum value, average value, and the total number of tablets tested. Customizable Parameters: Parameters can be preset at any time, with both preset and real-time data displayed on the LED screen. Advanced Automation: The device features auto-test, auto-diagnose, and auto-alarm functionalities, ensuring streamlined and efficient operation.
Technical Parameter

Hardness range	(2-199.9) N
Hardness accuracy	Max ( ±0.05%)
Diameter range for test preoduct	(3-40) mm
Max number in each group	≤100 tablets
Test time per tablet	≯20s/tablet
Working time continuously	More than 24hours
Power	220V/50HZ/60W
Dimension	500x300x160mm3

Additional Offerings by BSIT Company:
YD Series Tablet Hardness Tester
RC Series Dissolution Tester
CS Series Friability Tester
BJ Series Disintegration Tester
These testers are essential equipment in pharmaceutical factories, providing comprehensive testing solutions for tablet quality control.
Carton Package
Wooden Case for more than 3 sets of testers

---
