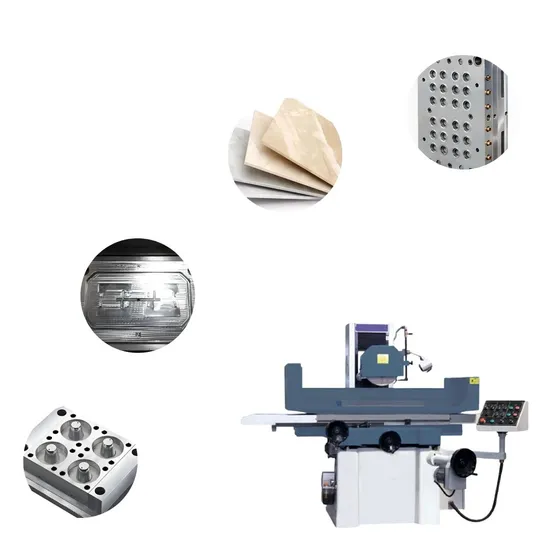

Sga Series Saddle Moving Surface Grinder Sga-30100/Sga-4080/Sga-40100

Product Description

Specificities:
The machine adopts saddle moving structureand the transverse guide rail is attached withteflon wearable material. Closed hydraulic systemis adopted for the movement of the worktableThe forward and backward feed can be manuallyfed or the screw can be driven by the motor toautomatically feed intermittently. The downwardmovement of the wheelhead can be achievedby using the lifting motor for quick lifting (AHR)or the servo motor for quick lifting and automaticHDCNCfeeding (AHD), which can also be accomplishedmanually. The machine adopts high precisionsliding screw, high strength cast iron foundation,.wheelhead spindle adopts precise angular contact roling bearing, high rigid sleeve structure, the overall qualityof the machine is stable, smooth operation.

Model No.		SGA-30100AH	SGA-4080AH	SGA-40100AH
		SGA-30100AHR	SGA-4080AHR	SGA-40100AHR
		SGA-30100AHD	SGA-4080AHD	SGA-40100AHD
Item No.
General capacity
Table size (WxL)		305X1020 mm	406X813 mm	406X1020 mm
Max. longitudinal travel		1130 mm	910 mm	1130 mm
Cross Travel		340 mm	450 mm	450 mm
Max. distance from spindle center to table		580 mm	580 mm	580 mm
Magnetic chuck size		300X1000 mm	400X800 mm	400X1000 mm
Speed of table longitudinal movement		7~23 m/min	7~23 m/min	7~23 m/min
Table transverse movement	Auto feed	0.1~8 mm/min	0.1~8 mm/min	0.1~8 mm/min
	Rapid speed	990 mm/min	990 mm/min	990 mm/min
	Feed of handwheel	0.02 mm/div	0.02 mm/div	0.02 mm/div
Wheelheed vertical movement	Auto feed	(AH/AHR model)0.005/0.01/0.02/0.03/0.04/0.05(only for AHD model)	(AH/AHR model)0.005/0.01/0.02/0.03/0.04/0.05(only for AHD model)	(AH/AHR model)0.005/0.01/0.02/0.03/0.04/0.05(only for AHD model)
	Rapid speed	(AH/AHR model)460(only for AHR/AHD model)	(AH/AHR model)460(only for AHR/AHD model)	(AH/AHR model)460(only for AHR/AHD model)
	Feed of handwheel	0.005 mm/div	0.005 mm/div	0.005 mm/div
Grinding wheel	Speed(rpm)	1450(50HZ),1750(60HZ)	1450(50HZ),1750(60HZ)	1450(50HZ),1750(60HZ)
	Size(ODxWxID)	350x40x127 mm	350x40x127 mm	350x40x127 mm
Spindle Motor		1.5 kw	5.5 kw	5.5 kw
Hydraulic motor		0.75 kw	2.2 kw	2.2 kw
Cooling pump motor		0.04 kw	0.125 kw	0.125 kw
Elevating motor		(AH mode)0.25(AHR model)0.5(AHD model,servo motor)	(AH mode)0.25(AHR model)0.5(AHD model,servo motor)	(AH mode)0.25(AHR model)0.5(AHD model,servo motor)
Cross feed motor		0.04 kw	0.04 kw	0.04 kw
Max. loading capacity of table ( include magnetic chuck)		400 kg	500 kg	600 kg
Total rated power		9 kw	9 kw	9 kw
Height of machine		1890 mm	1890 mm	1890 mm
Floor space (LxW)		4400x2200 mm	3600x2400 mm	4400x2400 mm
Gross weight		3300 kg	3500 kg	4000 kg
Package dimensions(LxWxH)		2950x2220x2210 mm	2850x2270x2180 mm	2950x2270x2210 mm

FAQ
1.How can I choose the most suitable machines?
Please advice your technical requirements, or workpiece information or just send drawing, we can provide most suitable machine model information to you.
2.What's your main products of your company?
We specialized in all kinds of metal-working machines, such as CNC Lathe Machine, CNC Milling Machine, Vertical Machining Center, Lathe Machines, Drilling Machine, Radial Drilling Machine, Sawing Machine, Shaper machine, laser and so on.
3.Where is your factory located?
Production bases are in Canton, Jiangsu and Shandong.
4.What is your trade terms?
FOB , CFR and CIF all acceptable.
5.What's the MOQ?
1 SET.
6.Are you a manufacturer?
By collaborating of more than 10 years with selected manufacturers that possess different product advantages, integrating foreign demands, we have built out full range high quality product line which enjoy better pricing and lead time while we can execute production monitor and quality assurance, and we provide comprehensive high-quality pre-sales and after-sales services.
7.What's the Payment Terms?
T/T, 30% initial payment when order, 70% balance payment before shipment Irrevocable LC at sight.
8.How to get quotation?Place an order? How about the delivery time?
Just send us an inquiry or contact us with online service / WhatsApp advising your technical requirements or workpiece information, we will revert you shortly with our catalogue , quotation and other details you need. For standard models, lead time is around 30-60 days after payment received.
9.What service we can offer?
1). 12 months warranty.
2). Free technical support online service via email, telephone, video meeting etc.
3). On-site commissioning, testing and training service.
4). Spare parts and consumable parts supply and machine repair service.
5). All of the questions will be replied within 24 hours.

---
