Narrow Fabric Warping Machine Warp Beam Aluminum Spools Loom Parts Needle Loom

Product Description

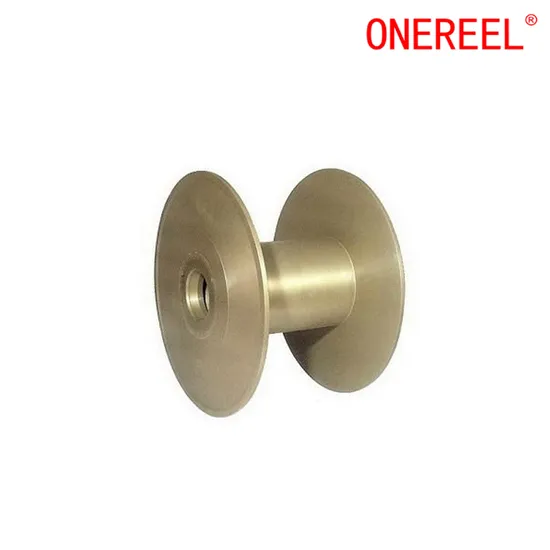

Narrow Fabric Warping Machine Warp Beam Aluminum Spools Loom Parts Needle Loom
Product Description

Specification :30"*21"
Diameter:762mm
Length:540mm
Pipe diameter:300mm
Hole diameter:152.7mm
Internal width:470mm
If you need any change ,we can according to your request !
Flange:Made of high strength aluminium alloy and manufactured by high pressure forging press,so it has excellent rigidity and durability .
Barrel:As an extrued pipe of heat-treaded aluminium alloy ,it has high strength and precision.
Welding :Welded with high precision MIG automatic welding method by ROBOT system.
Surface treatment:Through hard anodizing coating treatment,Corrosion and surface scratching are entirely prevented.
Beacuse of dynamic balancing fuction,a good compatibility with knitting machine is maintaine even though high-speed rotation.
Durability and precision are maintained even after several years utility.
Product Parameters

Technical Parameter

Specifications for casted beams are available
Specifications	Net Weight
Dia 355mmx174mm	9.5 KGS
Dia 14"x21"	13 KGS
Dia 21"x21"	38 KGS
Dia 30"x21"	82 KGS
Dia 34.5"X21"	86 KGS
Dia 40"X21"	120 KGS
Dia 42"X21"	125 KGS
Dia 21"X42"	60 KGS
Dia 30"X42"	135 KGS

ONEREEL is specialized in the design and manufacture Steel Spools, Plastic Spools, Cable roller, Yarn Bobbin, aluminum spool , Cable Reel Stand, Sheave Pulley, Cable Conveyor, Hydraulic Puller Tensioner, Gin Poles, Cable Pulling Winch, Safety Tools, Wire Grip, Plastic Parts, and Pump in the industry since 1991. All of our customer spool and wire carrier are engineered and manufactured in our 120,000 square foot state-of-the-art manufacturing plant located in Ningbo, Zhejiang.
ONEREEL is specialized in the manufacture of reels for cables and electric wires, iron axles, disc spool for steel cables and various delivery reels. With strong technological capabilities and full series of production equipment. All of our products go through the dynamic and static balance tests. We have passed the quality system certification ISO9001:2000 to ensure the product quality. Following the standards of GB4004-83, JB/T8997, DIN46395 and DIN46397 in productions.
Hot Product
Our Customer


Packaging & Shipping

Packaging & Transportation

Certifications

Authoritative Certificate

FAQ

FAQ
Q1: Can I get samples?
A: According to spool model and material, we will advise.
Q2: How long is the sample LEAD TIME?
A: For existing samples, it takes 2-3 days. If no stock, we will advise lead time.
Q3: Can you develop new products?
A: Yes, we have new products developing ability and we are good at developing new mold.
Q4: How much is the freight charge?
A: It depends on spool package volume, if small quantity, volume and urgent goods,
we may advise FEDEX or other couriers' charge for your check.
If volume bigger and by seaway suitable, we provide FOB or CIF price to you.
Q5: What format of the file do you need if I want my own design?
A: We have our own mound workshop and can provide spool or other plastic product developing and injection service.
Q6: How about your service?A: We have pre-sale service, in-sale service and after-sale service. As "Customer First" is the most important principle of company operation.
You can freely help you out either Tech issue or Products requirements. Pls approach us. Thanks.

---
