Automatic Bathroom Tissue Paper Production Line

Product Description

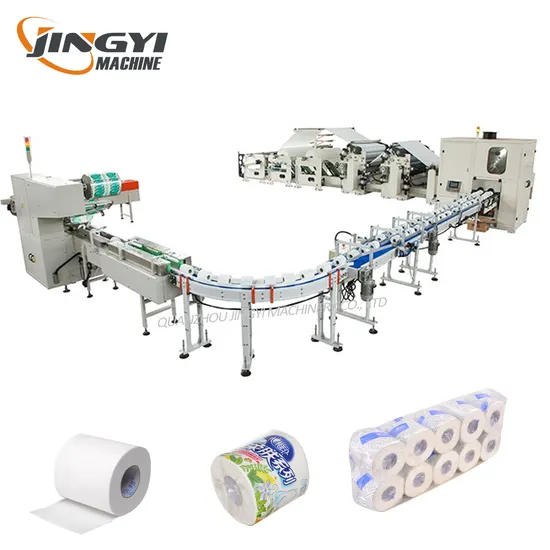

Automatic bathroom tissue paper production line
Project OverviewToilet Paper machine model WSZ 1575 capable of producing high quality toilet paper rolls to your specifications. System Performance

Machine Speed:	Design speed: 200m/min Production speed: 160-180m/min
Availability:	Above 90%
Waste:	≤2%

Note: System Performance depends on product design, raw materials and other production variables. Product Specifications

Toilet paper rolls:	Toilet paper rolls with multi-rolls packing
Sizes:	According to customer's requirement

Machine Configuration

Driven System	Full automatic Controlling System
Line Direction	According to customer's requirement

General Specifications

Electrical Power Supply:	380VAC, 3ph, 50Hz, (can be set according to customer requirement)
Main Machine Color:	Framework - Silvery White Safety parts - Red (Can do customer's color)
Purchased Components Color:	As supplied by Manufacturer

Each machine details:
1.Automatic Roll Core Machine Functions and features: This is a preferred equipment for producing core for toilet paper, plastic PE film and N.W. to use. Inverter control to ensure the accuracy of the roll core tube length Automated online gluing,tube rolling and cut off Product diameter and length can be customized according to customer needs The machine is reasonable designed, easy for operation and convenient maintenance Main technical parameters :

Design speed	20 m / min
Stable speed	18 m / min
kraft paper width	50~70mm
Paper Tube diameter	25mm~100mm(can be customized)
Paper tube layers	2 ~ 5 layers(choosen by customer)
Kraft paper gsm	200-400 gsm
Roll core Length	adjustable (maximum: 3m)
Defect rate	≤2%
Voltage	380V 50HZ
Power	4.0KW
Overall Size	Main machine 2950×1700×1800mm Glue tank device 1250X850X1200mm
Weight	1500Kg

2. Toilet paper machine
Automatic Toilet Paper And Kitchen Towel Rewinding Machine Equipment Description: This is an automatic rewinding machine for toilet paper and kitchen towel, with the function of roll core auto feeding, embossing, glue lamination, perforating, trim sealing and so on. Can also do kitchen towel with lamination unit, also can do with colorful lamination. This machine is designed and made according to CE certificate standard, with safety safety-guard door, emergency stop and other safety devices, to protect operators. With automatic roll core feeding unit, without manual roll core feeding, after rewinding will automaticly push out the log, and immediately rewind again. Can adjust the specification of the roll core easily. With international advanced PLC programmable controlling technical, man-machine interface operation table. The production data and technical parameters show on touch screen. With high precise perforation blades, lower noise, clearer perforation, can adjust the perforating distance with bigger range. Jumbo roll tension controlling system, Pneumatic lifting the jumbo roll; Can use the steel to steel embossing unit for point to point embossing rollers, make the paper softer, and double layers match well. This equipment is durable and wearable with simple operation and maintaining. Main Technical Parameter:

Max jumbo roll width	1750mm (other size can be ordered) Can order from 1200mm to 2800mm
Max jumbo roll diameter	φ1100mm(for bigger size can be ordered)
Jumbo roll inner diameter	3inches (76.2mm)
Finished products diameter	φ80-150mm
Perforated distance	100-150mm (other size can be ordered)
Production speed	0~180m/min
Machine power	7.5~22kw (depends on machine model)
Roll core unit	With or without roll core
Jumbo roll stands	1~3 stands (standard is 2)
Embossing unit	Single embossing, double embossing (steel to rubber roller, steel to paper roller, steel to steel roller)
Jumbo roll loading	With air cylinder loading
Parameter setting	Man-machine interface operation, Touch screen
Machine overall dimension	3500*2500*1500~6000*3500*1500mm
Machine weight	1500~4500KG (approximately)
Remote controlling	Depends on customer
Lamination unit	Can be ordered
Colorful lamimation	Can be ordered

3. High-speed Log Saw Machine
Machine function:
This is a servo controlling machine for cutting toilet paper and kitchen towel rolls, can connect with toilet paper rewinding machine and packing machine. It's an important part of the production line, can improve the production capacity, reduce the labour cost. This machine adopts advanced servo controlling system, with PLC controlling and touch screen operation.
Machine features: With automatic blade grinding system, the grinding time can be set on panel,; Two channels, so two toilet rolls from rewinding machine will feed automatically, then pushing out after cutting; The shortcuts can be kicked off from the good products,improve production capacity; Cutting surface is flat and clean, to improve the quality of finished products. Machine main technical parameters:

Machine model	JY-JTZ-DHX
Toilet paper rolls length	1750mm-2800mm(other sizes can be ordered)
Toilet paper rolls diameter	φ90-120mm(other sizes can be ordered)
Design speed	150cust/min (2rolls/cut)
Stable production speed	120cust/min (2rolls/cut)
Cutting blade grinding system	Automatic grinding, grinding time can be set on screen
Cutting blade diameter	φ610mm
Machine power	About 10KW
Machine size	About 7000*2500*2000mm
Machine weight	About 4T

4.Single roll Toilet paper packing machine
Machine Main performance features: This fully automatic single roll packing machine is specially for toilet paper and kitchen towel with or without roll core package. Paper feeding, film feeding, longitudinal sealing, cutting, coreless paper exhaust,reversing operation actions are driven by servo control method that has complete run function, configuration, high efficiency, simple operation, specifications for wide range, quick changeover specifications, convenient maintenance low use cost and other the advantages. So that it averts the second pollution of hand operation in the process of package. Double paper supporting devices are applied for fast film changing. Stopping the machine in selected position, no sticking to the knife and no wasting packing film. It may select hot-melt date printer, gusset device. Machine main technical parameters:

Technical Specification	Description	Remarks
Application Range	Single Toilet paper with core or coreless
Feeding type	Automatic Feeding System	V Grade
Design Speed	0-220rolls/min	Depends on the roller size
Stable Speed	With core:0-180rolls/min Without Core:0-120rolls/min
Packing Film Structure	Double Rollers
Toilet rolls diameter	80mm-130mm
Roll length	Withcore:80-220mm without core:80-170mm
Module	2Sets	Roller Diameter:80mm~120mm
Dimension	5500mm*3300mm* 1600mm
Weight	About 1800KG
Packing material	Double side air through BOPP,SPP, CPP	Choose by buyer
Film thickness	0.018mm-0.03mm	Choose by buyer
Roller Max Dia.	380mm
Roller Inner Dia.	70-76mm	National Standard
Film Roller Max Width	430mm
Voltage	220V/50HZ	National Standard
Total Power	About 12 KW
Cutting blade	Double blade

5.Toilet paper multi rolls packaging machine
Machine main function:
Multi toilet rolls packing machine (suitable for 2-24 rolls per bag )
This machine is specially used for packaging toilet rolls and kitchen towel, with a conveyor belt, can connect with the log saw cutting machine.
Machine Main technical parameter:
single roll size: customizable (length, diameter need to be selected).
Packing method: two lines, one or two layers, can pack from 2 to max 24 rolls
Voltage: 220V, 50Hz
Main power: 2KW
air Pressure :0.6MPA
Packing speed: 8-10 bag/min
Machine size: 7000*1300*1400mm
Weight :700KG
Contact Us:
Quanzhou Jingyi Machinery Co.,ltd
Add: Jiangnan Street,Licheng District, Quanzhou,Fujian
Name: Martin Wu
Mob: 0086-13615946593

---
