Dual-Dipole FM Transmitting Antenna with Frequency Range of 87-108MHz

Product Description

FM Dual-Dipole Transmitting Antenna with Frequency Range of 87-108MHz for Television Transmitting Equipment Product Description Overview of Transmitting Antennas
The FM single dipole transmission antenna is primarily used in FM broadcasting transmission systems to efficiently radiate the RF power signal output by the FM transmitter.
The antenna's radiating element is constructed from 304 stainless steel, with the inner conductor made of silver-plated copper.
This design offers advantages such as excellent corrosion resistance and a wide channel bandwidth.

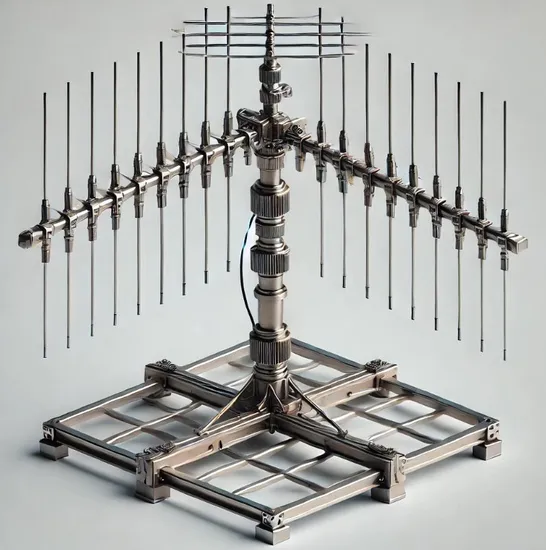

Detailed Photos
Array Horizontal Directional Diagram
Product Parameters Array Parameters

Layer	Phase	Gain(dB)	Layer	Phase	Gain(dB)
2	1	11.5	6	1	16.3
	2	8.5		2	13.3
	3	6.7		3	11.5
	4	5.5		4	10.3
4	1	13.5	8	1	17.5
	2	10.5		2	14.5
	3	9.7		3	12.7
	4	8.5		4	11.5

Technical Parameters

Electrical performance			Mechanical performance
Frequency range	87~108MHz		Antenna material	Radiating element: 304 stainless steel inner conductor with silver-plated copper.
Characteristic impedance	50Ω		Wind resistance	200km/h
Gain	7.8dB (Single element)		Dimensions	2500*1700*1100mm
Polarization	Vertical or horizontal polarization		Weight	35kg (Single element)
Standing wave ratio (SWR)	< 1.1 (Specify channel)		Pole diameter	Ø50mm~Ø110mm
Maximum power handling	0.1~20kw(Single phase)
Input interface	L27/IF45/IF70/IF110
Lightning protection	Directly grounded
Ambient temperature	-40~60ºC
