| US$20,000.00 | 1 Set (MOQ) |
| Type | Model | Capacity(T/D) | Flake thickness(mm) | Roller size(mm) | Power(kw) | Dimensions (mm) | Weight(T) |
| Corn flaking mill | FC7175SF | 240 | 1.2-2 | 711*1750 | 110/132*1+2.2+1.1 | 3200*2500*1900 | 16.7 |
| FC7150SF | 200 | 1.2-2 | 711*1500 | 110*1+2.2+1.1 | 3000*2500*1900 | 15.5 | |
| FC7150F | 200 | 1.2-2 | 711*1500 | 55*2+2.2+1.1 | 2700*2500*1800 | 15 | |
| FC6150F | 160 | 1.2-2 | 600*1500 | 37*2+2.2+1.1 | 2600*2200*1750 | 8.5 | |
| FC6125F | 120 | 1.2-2 | 600*1250 | 30*2+2.2+1.1 | 2300*2100*1650 | 6.5 | |
| FC6100F | 70 | 1.2-2 | 600*1000 | 22*2+2.2+1.1 | 2000*2100*1650 | 6.1 | |
| FC6060F | 50 | 1.2-2 | 600*600 | 15*2+2.2+1.1 | 1500*2100*1530 | 4.2 | |
| FC4150F | 100 | 1.2-2 | 400*1500 | 22*2+2.2+1.1 | 2350+1240+1870 | 4 | |
| FC4080F | 50 | 1.2-2 | 400*800 | 15*2+2.2+0.75 | 1550*1240*1870 | 3 |
| Technical Parameter of Flaker model FC4080F | |||||

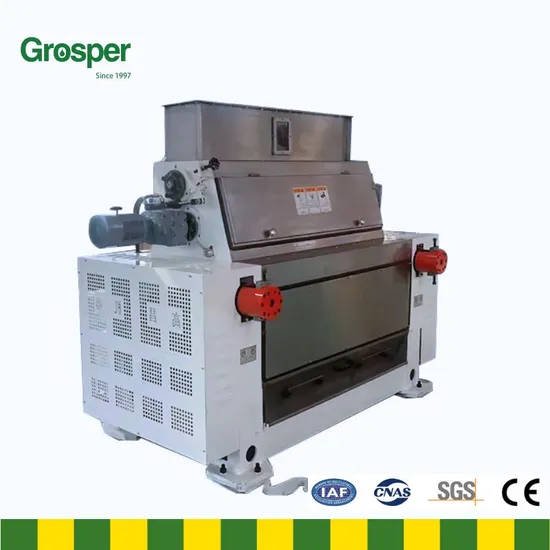

| 1 | Equipment name | FC4080F Flaker | 2 | Model | FC4080F |
| 3 | Chinese Trade Mark | Liaohai Pearl | 4 | Abroad Trade Mark | Grosper |
| 5 | Capacity | 40-50T/24H | 6 | Raw material | Corn |
| 7 | Roller size(mm) | φ400*800 | 8 | Chill depth(mm) | 20-25mm |
| 9 | Roller materials | High Ni Cr Mo alloy | 10 | Chill hardness (hs) | 65-72 |
| 11 | Flake thickness(mm) | 1.2-2 | 12 | Roller speed(rpm) | 485 |
| 13 | Total motor power(kW) | 32.95 | 14 | Drive motor power(kW) | 15*2 |
| 15 | Reducer power(kW) | 0.75 | 16 | Weight(≈t) | 3 |
| 17 | Dimensions(mm) | 1800*1240*1870 | 18 | Bearing type | 23220CAK/W33 |
| 19 | Pulley type | 4SPC5604-4040-90,4SPC280-3535-48 | |||
