Small capacity PP PE bottle recycling line

Product Description

Product Description
This pp pe bottle recycling line is designed and manufactured by MOOGE TECH, which is widely used for waste rigid plastic HDPE bottle, PP kettle, etc.

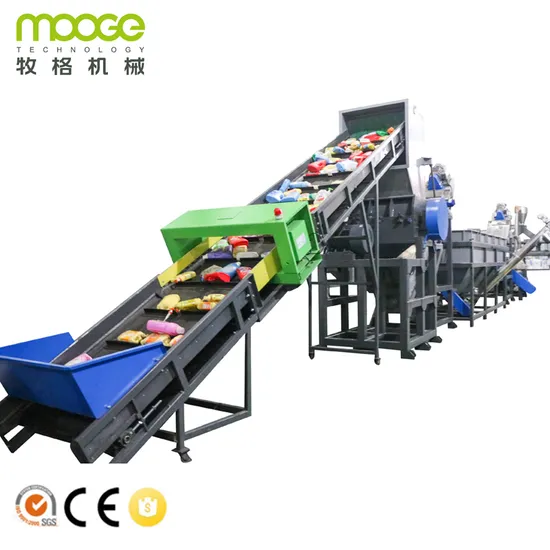

The whole recycling line including the conveyor belt, metal detector, wet crusher, floating washing tank, high speed friction washer machine, centrifugal dewatering machine, hot air drying system and material collecting packing system.The waste dirty rigid pe pp bottles/buckets go through crushing, washing, drying, collecting process will turn to be clean flakes for further pelletizing.
We can also customize the washing line according to client's material and product requirement.
Product Parameters

Model	Capacity	Installed Power	Water Supply	Manpower	Area Required
MEB-300	300 kg/hr	100 KW	4-5 m3/hr	3-4 Person	20*4.5*5
MEB-500	500 kg/hr	115 KW	5-6 m3/hr	4-6 Person	20*4.5*5
MEB-1000	1000 kg/hr	125 KW	7-8 m3/hr	8-10 Person	23*5*5
MEB-1500	1500 kg/hr	180 KW	8-10 m3/hr	12-14 Person	23*5*5
MEB-2000	2000 kg/hr	225 KW	10-15 m3/hr	16-18 Person	28*5.5*5

Detailed Photos
Crusher machine: used for pe pp bottle size reductionFriction washing loader: Friction washing the bottle flakes with water and loading up itFloating washing tank: floating washing separate the sand, soil and other dirtyHorizontal dewatering machine: remove out the water from bottle flakes
Hot air drying system: futher drying the bottle flakes with hot airRaw material and final product photo for reference
Related Photos
We also supply plastic pelletizing line / plastic granulator to make the clean flakes into pellets (granules).
Double stage die-face cutting plastic pelletizing lineDouble stage strand-cooling cutting plastic pelletizing line
Certifications
CE Certification and SGS Certification
Company Profile
The famous brand we use in our plastic recycling line.
*If you are interested in our pp pe bottle recycling line, pls do not hesitate to contact me!

---
