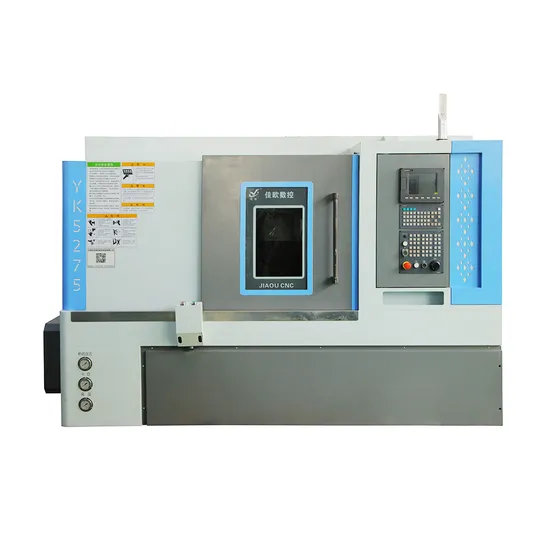

High-Precision CNC Lathe for Efficient Turning Operations

Product Description

Product Description

1. Efficient Turning Capability
Designed specifically for turning operations, this CNC lathe ensures smooth and precise processing of a wide range of metal workpieces. It is ideal for producing cylindrical, conical, and intricate profiles with high accuracy.
2. 30° Slant Bed for Enhanced Stability and Space
The 30° slant bed design offers improved rigidity and stability, ensuring precise machining even during high-speed operations. The slant structure also allows better chip evacuation, reducing downtime and improving productivity.
3. Hydraulic Tailstock for Long and Heavy Workpieces
The hydraulic tailstock provides exceptional support for machining long or heavy parts, minimizing deflection and ensuring consistent results. This feature is particularly beneficial for industries requiring precision in large-scale or high-strength components.
4. Premium Precision Components
Equipped with key components sourced from Taiwan, Japan, and Germany, the machine delivers superior durability, reliability, and machining accuracy. These globally recognized parts ensure the machine maintains optimal performance over long-term use.
5. High-Volume Production Efficiency
The static tool holder turret and streamlined structure make this CNC lathe an excellent choice for high-volume batch production, significantly reducing cycle times and boosting overall productivity.
6. Tailored for Diverse Industries
This CNC lathe is ideal for industries such as automotive, general manufacturing, and energy. Its robust design and consistent performance make it suitable for machining simple and medium-complexity parts with reliability and efficiency.
Product Parameters

Machining Capacity	Swing over bed	mm	ф600
	Swing over carriage	mm	ф320
	Max machining length	mm	700
	Max turning dia	mm	ф460
	Max bar material size	mm	ф52
	Distance between centers	mm	750
	Interference diameter	mm	ф180
Spindle	Spindle nose	-	A2-6
	Spindle bore	mm	ф67
	Taper of spindle inner hole		Metric 70(1:20)
	Spindle motor power	kw	15
	Chuck size	inch	8
	Spindle speed	rpm	200-3000
Axes specs	Axes travel	mm	X240 Z750
	Axes fast moving	m/min	X20 Z22
	Repeatable positioning accuracy	mm	X0.003 Z0.005
Tool type	Turret	-	12-168-420
	Tool holder size	mm	25*25/ф32
Tailstock	Tailstock form	-	Hydraulic
	Quill inner taper	MT	4#
Other specs	Programming		ISO standard
	Cooling motor	w	550
Measurements	Dimension	mm	around 2950*1720*1950
	Weight	kg	around 4350

Certifications
We have our own independent R&D and design team and have applied for a number of technical patents. From high-precision spindles to bed bodies to external sheet metal, the R&D and design department designs and the production department implements, giving us full control over design and production autonomy, making it more flexible and changeable.
Company Profile
Yuhuan Jiaou CNC Machine Tool Manufacturing Co., Ltd. is located in Bingang Industrial City, Shamen Town, Yuhuan City. Our company is a technology-based enterprise, specializing in the R&D, production and sales of CNC machine tools, and has a professional technical and sales service team who has long been engaged in the design and development of CNC machine tools, constantly innovating and advancing with the times. The precision CNC lathes designed for the metal working, including gang type, turret type, mill-turn compound type, can easily handle complex, precise, small-batch, and multi-variety part processing problems, and provide customers with targeted and efficient metal cutting solutions, creating more possibilities for their intelligent and automated production processing.
Equipped with a complete quality testing system and sophisticated testing instruments, our company has passed the ISO9001 system certification to ensure that we provide customers with high-quality equipment and fast after-sales service.
We adhere to the business philosophy of "Detail first, customer first, and creating maximum value for customers", and always implements the quality guideline of "Quality first, continuous improvement". We provide full-service from pre-sales to after-sales, from products to designs, and wholeheartedly commit to providing customers with thoughtful, advanced, high-quality, cost-effective equipment.
Creating the greatest value for you is of most significance for Jiaou's efforts!
Yuhuan JIAOU CNC has multiple production workshops, from bed component blank processing, optical and mechanical assembly, installation and debugging, sheet metal laser cutting and bending, external protective sheet metal spraying, etc., all of which are independently produced and processed.
Packaging & Shipping
FAQ
Q: What's the availability of spare parts?
A: We maintain a comprehensive stock of spare parts with quick delivery options.
Q: What CNC control system does it use?
A: Our machines can be equipped with different brands of CNC control systems, such as FANUC, SIEMENS, SYNTEC, KND, GSK, etc.
Q: Do you provide operator training?
A: Yes. We welcome your engineers or operators to have operator training at our site. And we are able to provide online technical support as well.
Q: What's the lead time for delivery?
A: Faster delievery time. 10-20 days for our standard regular machines, the delivery time of customized machine need to be negotiated.
Q: Is customization available?
A: Yes. We have rich experience in custom processing and can provide flexible customization services from bed to processing parameters to appearance.

---
