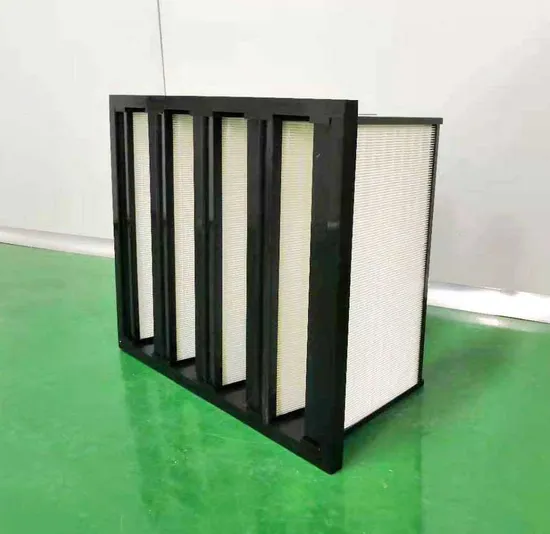

Industrial Mini Box Type Plastic Frame V-Bank V-Type Paint Filter Paper

Product Description

Product DescriptionIndustrial Mini Box Type Plastic Frame V-Bank V-type Paint Filter Paper
The pleated air filter has the same structure, but different filter materials result in different filtration levels, including medium-efficiency, sub-high-efficiency, and high-efficiency, which are classified as follows: synthetic fiber F7, F8, F9, H10, and glass fiber F6, F7, F8, F9, H10.
It primarily uses glass fiber filter paper or synthetic fiber filter paper with a plastic W-type frame.

Nominal Size inches	Actual Size mm	Rated Airflow m/s	Initial Resistance	Final Resistance	AVerage arrestance %	Filter Object um	Filtration class
12*24*12	289*595*292	1700	100	324	>99	≥99.99%0.3um	F7, F8, F9, H10
24*24*12	595*595*292	3400	100	324	> 99	≥99.99%0.3um	F7, F8, F9, H10
12*24*12	289*595*292	1700	79	324	>98	≥99.99%0.3um	F7, F8, F9, H10
24*24*12	595*595*292	3400	79	324	>98	≥99.99%0.3um	F7, F8, F9, H10
12*24*12	289*595*292	1700	63	324	>97	≥99.99%0.3um	F7, F8, F9, H10
24*24*12	595*595*292	3400	63	324	>97	≥99.99%0.3um	F7, F8, F9, H10

Product FeaturesLarge air volume, low resistance, large dust capacity.
High adsorotion, Environmental health and lasting longevity.
Large filtration area, Small footprint, making air conditioning structural design more compact.

Frame	Aluminium alloy / Plastic
Media	Glass Fiber Filter Paper/PP/PTFE
Structure	V-Bank
Dimension	According to customers' requirements
Maximum temperature	80ºC
Maximum relative humidity	≤80%
Fiber class according to EN779	F7~H10
Certification	ISO9001, En779

Production Technology
APPLIATION:
1. Suitable for medium to high-efficiency filtration in high air volume HVAC systems.
2. It is mainly used for intermediate or terminal filtration in high air volume purification air conditioning systems and is well-suited for high airspeed systems, variable airflow systems, and systems operating in high-humidity corrosive environments.
Company ProfileEstablished in 2007, Zhengzhou Ailin Technology Co., Ltd (also known as Henan Yifan Filter Co., Ltd) specializes in the manufacturing of high-quality air purification and filtration products with a global reach. Our company spans over 3000 square meters and employs 50 staff members, including 11 research technicians.
Our Mission:
At AILIN or YIFAN, our mission is to deliver the highest quality products at the most competitive prices, ensuring an unparalleled customer experience with a win-win approach.
Getting to Our Factory:
• By High-Speed Rail: To Zhengzhou (Trading company by Ailin) or Xinxiang (Manufacturing company by Yifan) in Henan province.
• By Airplane: To Zhengzhou Xinzheng International Airport in Henan province.
Our main products include:
G-level pre-filters, F-level medium bag/pocket filters, H-level HEPA filters, and U-level ULPA filters, as well as various types of high-temperature air filters, oil filters, and water filters.
Our products are SGS and ISO9001 certified and have been exported to Europe, North America, Southeast Asia, Africa, and other regions. Our commitment to quality and after-sales service has earned us a strong reputation in the machinery industry.
WHY CHOOSE US ?
We really hope that customers can ask more questions, and then help customers solve all aspects of the problem
1. We use the highest quality raw materials to ensure the durability and reliability of our product.
2. Our design team continuously searches market demands to provide you with unique and practical designs.
3. We ensure competitive prices while maintain high quality for your satisfication
4. We value your needs and strive to ensure prompt delivery of our products to your hands.
5. We offer customization services to meet your unique requirements and preference.
6. Our team posenses extensive industry experience ready to provide you with professional advice and support. Warehouse Display
Packaging & Shipping
FAQ
Q1: Are you a factory or trading company?A1: We are factory with rich experience in China, and our company has established since 2007.
Q2: Can the product be customized?
A2: Yes, both the product and the packaging can be customized.
Q3: Do you provide samples?A3: Yes, free sample can be provided but customer needs to pay for the shipping costs.
Q4: How to pay?
Our company accepts various ways of payment, such as T/T , L/C etc.
Q5: How long is the delivery time?
A5: It depends on the order quantity. Usually it takes about 15 to 30 working days after receiving your deposit.
Q6: Do you arrange the shipment?
A6: Yes, our company can arrange the shipment to deliver the goods according to the client's customer's requirements.
Q7: What about the after-sales service?
A7:Our company is responsible for the supplied product ONLINE.

---
