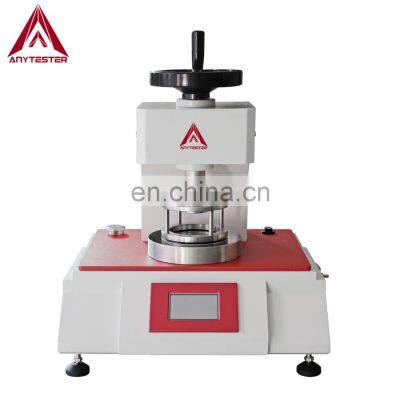

Product DescriptionHY0812D Hydrostatic Head Tester used to measure water penetration resistance of many kinds of fabric which with waterproof treatment, such as canvas, coating cloth, tent cloth, tarpaulin, rainproof clothing fabric and geotextile materials, etc. This machine can perform different test method including dynamic test method, static test method and program test method.Standard AATCC 127ASTM F1671ISO 811, 1420BS 2823, 3321, 3424-26, BS EN 20811JIS L 1092A/BERT 120-2-02GB/T 4744FZ/T 01004 Note: For more standards, please contact us Features1. Use touch screen to control, very easy to operate, language can be change between Chinese and English2. Adopt Japanese Panasonic servo motor and drive system3. Use imported high precision pressure sensor.4. Pneumatic clamp, make the loading force evenly to sample, avoid the sample be damaged, easy to mount sample.5. Five display unit free to change, Kpa, mmH2O, cmH2O, PSI, Bar6. Built-in professional LED light, easy to observe drops, and equipped with specialized drops record button, can record lot of pressure result7. The machine equipped with RS232 port to connect with PC, professional software for online operate and analysis date. The test report can store and print.Specification ParameterHY0812D-5 HY0812D-20HY0812D-50Measure range500pa-50kpa500pa-200kpa5kpa-500kpaPressure rise rate1-20kpa/min1-30kpa/min1-100kpa/minTest area100cm2 can be customizeAccuracy0.2%F.SDisplay resolution0.001kpaTest precision≤1% (5%-100% of measuring range)Power supply Ac 220V 50HZ 500WExternal dimension550×430×630mmWeight60kg
>>
