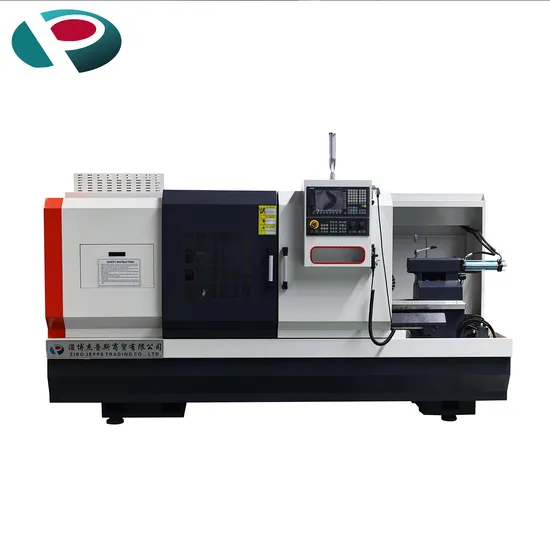

Ck6140 Metal Working High Precision China Cheap 220V Mini Automatic CNC Lathe

Product Description

CNC Lathe Features
1. High strength of the base, widened pallet, suitable for strong turning
2. Four-station electric tool rest
3. Frequency conversion stepless speed regulation
4. Internal stress annealing process
5. High strength cast iron
CNC Lathe Technical Parameter:

Specification	Units	CK6140
Max.swing over bed	mm	400
Max.swing over cross slide	mm	240
Max.turning length	mm	550/750
Max.bar capacity	mm	Ø48/82
Spindle nose(optinal chuck)		A2-6/A2-8
Spindle motor power	kw	5.5
Max.spindle speed	rpm	1800
Spindle bore	mm	Ø48/82
X/Z axis rapid traverse	m/min	6/8
X axis limit Travel	mm	280
Z axis limit Travel	mm	550/750
X axis motor torque	N.m	4
Z axis motor torque	N.m	6
X/Z axis repeatability	mm	0.002
Tailstock bore	mm	60
Tailstock quill travel	mm	100
Total power	kw	8
Tailstock taper		MT4
Machine dimensions(L*W*H)	mm	2000/2200*1600*1700mm
Weight	kg	2200

1.Q: Which trade term I can choose? A: You can choose FOB,FCA 2.Q: How can I get quotation from you?
A: You can make the inquiry online on made-in-china, or send email to us. It is better if you can tell what is your detailed request information. We will reply to you within 24 hours on work days, and within 48 hours on holiday. 3.Q: how can I make the payment?
A: We can make the deal on made-in-china online platform, you can pay by T/T . You can also pay to my company business bank account. 5.Q:What is your delivery time ? A:The delivery depends on different machines with different configurations. Please contact us to confirm it is in stock or not. We want to know:
Please tell us your specific purchasing requirements, so that we can make specific quotations.

---
