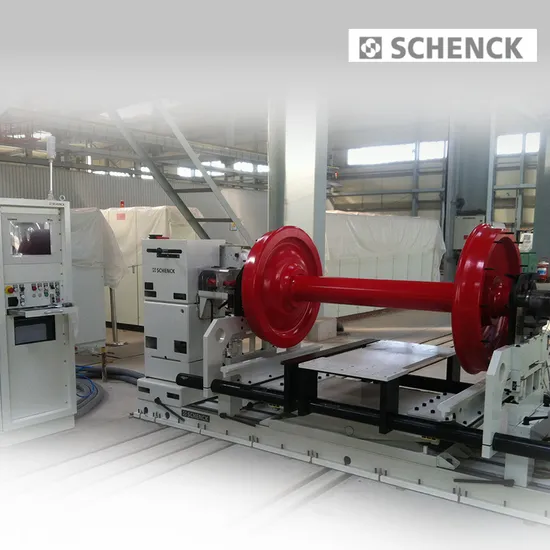

Schenck Horizontal Balancing Machine Hm4-Hm50

Product Description

Universally applicable with modular design;
High precision and efficiency
Safe handling through economic design concept;
Hard-bearing principle ensures quick change-over from one workpiece to the next;
Permanent Calibration, time and cost savings by elimination of calibration runs;
Provides for correction in two planes or separate correction of static and couple unbalance
Optional with belt drive and universal-joint drive for different type of rotors.
Advance measuring instrument CAB708, optional CAB 920 - the high end solution
Upgradeable by many additional modules e.g. for mass correction
With the appropriate machine design and a suitable protection device the machines can also be used for high-speed balancing: Bearing force monitoring for automatic shut-down in case of overload;Contact-free measurement of concentric running of rollers
Shielded sensor en case of magnetized rotors
Range of Application
Universal balancing machines series HM4-HM50 offers high precision and a wide application. It features permanent calibration, ergonomic structural design, and a user-friendly operating system. This machine is suitable for balancing both rigid and flexible rotors, weighing between 50 to 100 KGS and up to 8,000 KGS.
Typical applications are:
Blowers and fans for a variety of industries;
High-speed and low-speed rollers for paper and thin sheet production;
Electrical short-circuit armatures and generators for the electrical industry;
Separators / centrifuges for water processing.
Machine bed is dependent on the length of the rotor, the required height of the bearing pedestals is determined by the rotor diameter. If the rotor is mounted on its own bearing journals, these will be supported by roller carriages. Depending on the requirements imposed by the rotor, sleeve bearings may also be used.
Rotors requiring high torques are driven through variable-speed gearboxes and universal joint shaft. Lightweight rotors with smooth surfaces may be driven with the help of a belt drive system.
Schenck universal balancing machines series HM are a highly efficient investment both for one-off rotors and for small batches.
Technical Specifications

Rotor Data/Machine Size	unit	HM4	HM40	HM5	HM50
Max.rotor weight on rollers	kg	1500	3000	5500	8000
Max.rotor diameter above machine base	mm	1600	1600	1600	1600
Entendable to max.rotor diameter	mm	1940	1940	2100	2100
Journal diameter range	mm	12-100	15-120	18-140	25-180
Extendable journal diameter range	mm	100-200	120-240	140-280	180-380
Wn²-vale for permanent calibration	106kg/min2	450	710	1100	1400
Umar(based on CAB708 at apprx.1000 rpm)	gmm	5	8	16	20
Unbalance reduction ratio(URR)	%	95
Technical Data with End Drive
Basic machine base length	mm	3000	3000	3500	3500
Min.distance from coupling flange of drive shaft to the center line of the right bearing pedestal	mm	2000	2000	2300/2080	2300/2080
Min.distance between the bearing pedestal center lines	mm	90	90	100	100
Recommended drive power	kw	FC7.5/15/DC15	FC7.5/15/DC15	FC15/DC15/22/37	FC15/DC15/22/37
with gear box approx.	min-1	56-560/110-1130
with stepped pulley approx.	min-1
Technical Data with Belt Drive
Basic machine base length	mm	2000	2000	2500	2500
Min.distance from coupling flange of drive shaft to the center line of the right bearing pedestal	mm	1740	1740	2200	2200
Min.distance between the bearing pedestal center lines	mm	90	90	100	100
Recommended drive power	mm	240	240	320	320
with gear box approx.	kw	FC7.5/15/DC15	FC7.5/15/DC15	FC15/DC15/22	FC15/DC15/22
with stepped pulley approx.	mm	30-600	30-600	30-600/50-800	30-600/50-800
Length of machine base	mm
Max.distance between bearing pedestal center lines	min-1	170-1700/240-2400/360-3600		120-1200/220-2200/340-3400
Min.distance between bearing pedestal center lines	mm	100	100	150	150

---
