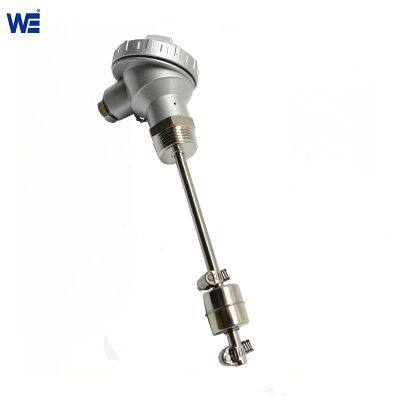

| Product | Magnetic float switch for diesel |
| Principle | float and magnetic level measurement |
| Model No. | WE-UQZ |
| Measuring media | Liquid (oil, water, alcohol, gasoline, diesel, lubricating oil etc.) |
| Medium density | ≥0.5g/cm3 |
| Output | Switch signal, normally open (NO) and normally closed (NC). |
| Contact type | SPST/ option SPDF |
| Contacting Rating | 50W/250VAC,200VDC 40W/250VAC 10W/110VAC |
| Contact Capacity | ≤70W |
| Temperature | -20℃~120℃;- 20℃~200℃(high temperature) |
| Working pressure | 0~3.5)MPa for metal type;(0~0.5)MPa for plastic type |
| Material | SS304/SS316/PP/PE/PTFE |
| Measuring range | 0-6000mm |
| Process connection | Flange :DN50/80/100 GB/ANSI/JIS Thread Other-Clamp |
| Manufacturer | Wepower Electronic Made in China |
| Quality | 12-month warranty |
| Package | safe export carton |
