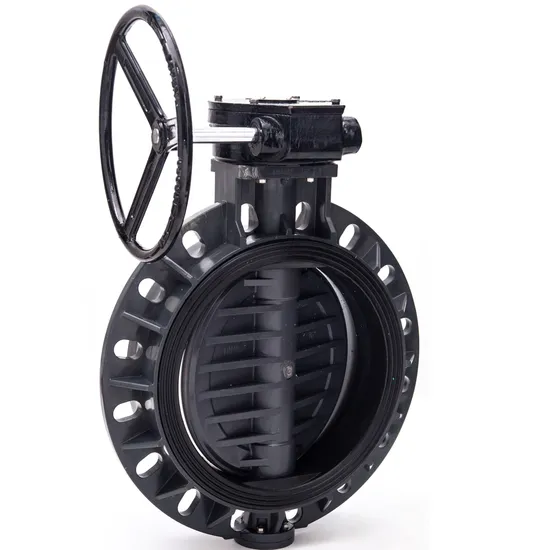

High Quality DN400 PVC UPVC Worm Gear Flange Butterfly Valve CPVC FRPP PPR Wafer Type Flanged Butterfly Valve Plastic Eccentric Lug Butterfly Valve (16")

Product Description

Tianjin Runke Plastic Tech Co., Ltd. has 10 sets of professional and large-scale injection molding equipment, more than 30 sets of professional processing equipment, and 4 sets of professional pressure testing equipment.
Each sealing surface is 100% machined, and each sealing link is 100% pressure tested one by one.
The company does not use recycled plastics or recycled rubber to ensure that the products meet the mechanical performance, sealing performance and service life.
The company mainly produces four series of more than 50 kinds of PVC-U, PVC-C, FR-PP, PP-R butterfly valves, PVC-U ball valves, PVC-U check valves, PVC-U bottom valves, with an annual production of 600,000 sets of valves.
PVC-U butterfly valve, PVC-U check valve, PVC-U ball valve comply with European DIN standard, American standard, Japanese standard. We can produce large size valves, product size ranges from DN15mm to DN400mm
PVC Swing Check Valve according to DIN,ANSI,JIS Standard DN20-DN150 ( ¾" ~ 6" ) Working Pressure PN10.
PVC 2 Pieces Compact Ball Valve according to JIS Standard DN50-DN100 ( 2" ~ 4" ) Working Pressure PN10;
PVC Wafer Check Valve according to DIN ANSI JIS Standard DN150-DN300 ( 6" ~ 12" ) Working Pressure PN10;
PVC Foot Valve according to DIN Standard with Specification DN20-DN150 ( ¾" ~ 6" ) Working Pressure PN10;
PVC True Union Ball Valve DIN, ANSI, JIS Standard with BSPT & NPT Threaded DN15-DN100 ( ½"~4" ) Working Pressure PN16 & PN10;
PVC Pressure Pipe Fittings for Water Supply according to DIN Standard 8063 PN10;

PPR Buterfly Valve
Lug Butterfly Valve
Butterfly Valve PVC
FRPP Butterfly Valve
CPVC Butterfly Valve
Wafer Butterfly Valve
Butterfly Valve
Butterfly Valve Wafer
Butterfly Valve Plastic
Flanged Butterfly Valve
Eccentric Butterfly Valve
PVC Butterfly Valve
Flange Butterfly Valve
Lug Type Butterfly Valve
Butterfly Valve Worm Gear
Wafer Type Butterfly Valve
DIN ANSI JIS BS Standard
DN50-DN400 ( 2"- 16" )
PP PPR FRPP UPVC Butterfly Valve ( Gear Type ) DN50-DN300 ( 2"- 12" )DN50-DN200 (2"- 8") 150PSI PN1.0MPa DN250-DN400 (10"- 16") 90PSI PN0.6MPaStandard: DIN, ANSI, JIS Standard Hi-Quality Low Torque Acid-Proof Alkali-Proof 100% TestWith Carbon Steel Stem #45 & EPDM RubberWith Stainless Steel Stem #304 & EPDM / FPM RubberWith Stainless Steel Stem #316 & EPDM / FPM RubberHygienic Lever FRPP Raw Material InjectionStandard: DIN, ANSI, JIS, BS StandardHi-Quality, Low Torque, Lockable, Acid-Proof, Alkali-Proof, 100% Test
Data Sheet of PVC-U FRPP CPVC Worm Gear Butterfly Valve

No.	Parts	Quantity	Material
1	Valve Body	1	PVC-U / PVC-C / FRPP
2	Valve Seat	1	EPDM / FPM
3	Valve Disc	1	PVC-U / PVC-C / FRPP
4	Valve Stem	1	C.S.45 / S.S.304 / S.S.316
5	O Ring	2	EPDM / FPM
6	Fixing Bolt	4	S.S.304 / S.S.316
7	Stem Key	1	C.S.45
8	Gear Box	1	Cast Iron / Plastic
9	Open Adjusting	1
10	Close Adjusting	1
11	Wheel Shaft	1	S.S.304 / S.S.316
12	Hand Wheel	1	Cast Iron / Plastic
13	Opening Pointer	1	S.S.304
14	Handle Pin	1	C.S.45 / S.S.304
21	Seat Locating Ring	1	EPDM / FPM
22	Seat Locating Ring	2	EPDM / FPM

High Quality
Plastic Butterfly Valve
PVC Butterfly Valve ( Lever & Gear )
FRPP Butterfly Valve ( Lever & Gear )
PVC Non Actuator Butterfly Valve for Electric & Pneumatic Actuator Usage
PP PPG FRPP UPVC Butterfly Valve for Water Supply DIN ANSI JIS BS Standard
DN.50mm to DN.400mm
Features
Water Supply
Material : FRPP UPVC CPVC
Standard : DIN ANSI JIS BS Standard
Connection : Flange
SIZE : DN50 ( 63mm ) 2" ~ DN400 ( 400mm ) 16"
Working Pressure : 150PSI 1.0 MPa
100PSI 0.6MPa
PP PPG FRPP UPVC Butterfly Valve for Electric & Pneumatic Actuator Usage
DN50-DN200 ( 2"- 8" )
DN50 - DN150 (2"- 6") 100PSI PN0.8MPa
DN200 (8") 80PSI PN0.5MPa
DIN, ANSI, JIS, BS Standard
Hi-Quality Low Torque Acid-Proof Alkali-Proof 100% Test
Can be Customized
Different Sizes Shaft of Square, Oblate, Round Keyway

Heavy the Valve Body, Thicken the Valve Plate
Thicken the Valve Stem, the Valve Stem Limit
With Carbon Steel Stem #45 & EPDM Rubber
With Stainless Steel Stem #304 & EPDM / FPM Rubber
With Stainless Steel Stem #316 & EPDM / FPM Rubber
Integrated Structure of Valve Seat and Valve Body
Actuator Mounting Hole
with ISO5211 Standard Without Bracket, Direct Connection
C-PVC PVC-U FRPP Butterfly Valve ( Lever Type ) DN50-DN200 ( 2"- 8" )
Working Pressure:
DN50-DN150 ( 2"- 6" ) 150PSI PN1.0MPa;
DN200 ( 8" ) 90PSI PN0.6MPa;

Standard: DIN, ANSI, JIS, BS Standard;
Hi-Quality, Low Torque, Lockable, Acid-Proof, Alkali-Proof, 100% Test
PVC Butterfly Valve Patent Technology
Increase the Locking Hole to Lock the Valve


Heavy the Valve Body, Thicken the Valve Plate
Thicken the Valve Stem, the Valve Stem Limit

With Carbon Steel Stem #45 & EPDM Rubber
With Stainless Steel Stem #304 & EPDM / FPM Rubber
With Stainless Steel Stem #316 & EPDM / FPM Rubber
Longer & Wider Handle,Handle Lever Bigger, Effort Operation
PP PPG FRPP UPVC Butterfly Valve ( Gear Type ) DN50-DN400 ( 2"- 16" )
DN50-DN200 (2"- 8") 150PSI PN1.0MPa
DN250-DN400 (10"- 16") 90PSI PN0.6MPa
DIN, ANSI, JIS, BS Standard
Hi-Quality Low Torque Acid-Proof Alkali-Proof 100% Test
Hygienic Lever PVC Raw Material Injection
Gear Box and Hand Wheel Can Be Made of Plastic
Integrated Structure of Valve Seat and Valve Body
With Carbon Steel Stem #45 & EPDM Rubber
With Stainless Steel Stem #304 & EPDM / FPM Rubber
With Stainless Steel Stem #316 & EPDM / FPM Rubber

---
