Xq6432 Universal RAM Type Milling Machine

US$7,000.00-9,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
XQ6432
Type
Knee-and-Column Milling Machine
Object
Hardware
Structure
Ram
Milling Cutter Type
Angle Milling Cutter
Milling Cutter Structure
Indexable Type
Controlling Mode
Artificial
Automatic Grade
Automatic
Precision
High Precision
Certification
GS, CE, ISO 9001
Condition
New
Universal RAM Type Milling Machine
Xq6432
Table Size
1370X320
Table Travel
1000X380X400
Spindle Taper
ISO40
Spindle Speed
45-1600(V)
Spindle Speeds
35-1500 (H)
RAM Travel
400
Main Motor Power
3kw
Horizontal Motor Power
3kw
Worktable Rotary
45 Degree (Optional)
Transport Package
in Wooden Case
Specification
XQ6432
Trademark
UNI-TECH
Origin
China
HS Code
84595900
Production Capacity
80 PCS/Month

Product Description

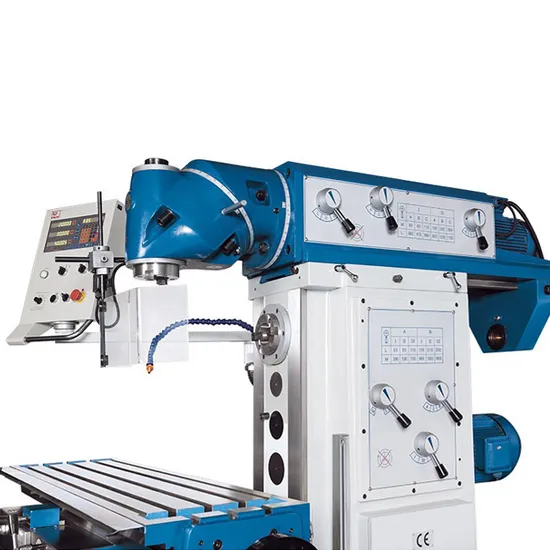

XQ6432 universal ram type milling machine
Fine graduated feeds in all axis, driven by servomotor
Universal mill head
column with Horizontal spindle
worktable rotary can be available.
ram box control speed changing.
Description XQ6432 XQ6432A XQ6432C
Table size mm 1270*320 1370*320 1370*320
X/Y/Z travel mm 720*300*400 820*300*400 1000*380*400
MAC rotary angle of table ° OPTIONAL ±45
Max table weight Kg 300 300
T-slots(NO./width/pitch) mm 3*14*80 3*14*80
Shaft speed series and range rpm 45-1660
35-1500		 VERTICAL 45-1660(11
HORIZONTAL 35-1500 (12
arm mm 400 400
distance between spindle center line and table surface mm 75-475 75-475
distance between spindle nose and table surface 260-660 260-660
distance between spindle nose and arm mm 180 180
Spindle taper 7:24 ISO40 7:24 IS040,
table rapid speed(X/Y/Z) MM 1000,1000,750 1000,1000,750
Table feed(X/Y/Z) mm X,Y:30-830
Z:23-625
Main motor power KW VERTICAL 3kw HORIZONTAL 3kw
Feed motor KW
Dimensions Cm 200*170*190 180*170*193 190*1750*190
Machine weight kg 1800 1850 1950

ITEM SIZE QTY
Horizontal mill arbors Ф27 1
Lifting Handle 1
Draw bar M16 2
Spanners S22-24,S17-19,S32-36 1
Inner spanner 5,6,10 1
Machine vice 136mm 1
Screw M16 2
Wash M16 2
Spindle are bor ISO40 1
