Product Details
Product Description
Product Description
Product Introduction

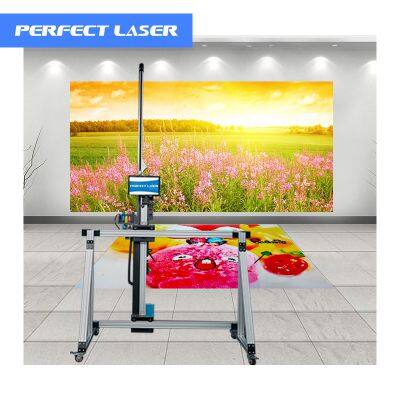

The 5D floor and ground inkjet printing machine is a new product strongly launched by Perfect Laser. It adopts imported Japan Epson high-definition print heads. The maximum spray speed can reach 64㎡/h. It’s fast, one-time imaging, with bright color, and will not get fade.
Product Features
1.Equipped with dual ultrasonic sensors, up and down two-way inductive surface tracking, automatic positioning, and automatic solution to uneven surface and floor tilt. .
2.AI intelligent image processing speed is fast and efficient.
3.Comes with 11.6 inch touch panel, easy and clear operation.
4.Negative pressure automatic ink supply ensures the continuity of ink supply, prevents dust from entering the ink tube and nozzle, prolongs the service life of the nozzle, and is more suitable for outdoor environments.
5. The printing head is automatically cleaned with one button, no need to be disassembled, and it can be completed automatically, which effectively guarantees the smooth flow of the ink path. The printing head adopts an automatic protection device, which greatly reduces the risk of the printing head being affected by the external environment.
6.High precision: the highest painting precision can reach 9600 DPI.
7.Built-in power supply backup. The floor ground inkjet printing machine can work continuously for up to 10-12 hours without external power supply or power failure.
Application
1. Applicable Materials: The floor ground inkjet printing machine is suitable for all kinds of white walls, such as: putty walls, ceramic tile walls, latex paint walls, cement walls, etc.,
2. Applicable industries: The floor ground inkjet printing machine is suitable for decoration industry, advertising industry, culture and education industry, government and community publicity, etc.
Technical Data
Product Name
| Wall Floor Ground Printer Printing Machine
|
Model
| PE-S10
| PE-UV-10
|
UV Curing Lamp
| No
| Have
|
White Ink Painting
| No
| Have
|
Other Parameters
|
Data Transmission Method
| Usb2.0/3.0/Bluetooth/Wireless Control (Optional)
|
Ultrasonic Sensor
| Pair
|
Length * Width * Height (Host)
| 40cm*32cm*250cm
|
The Fastest Painting Speed
| 64 Square Meters/Hour
|
Highest Painting Accuracy
| 9600dpi
|
Ink Consumption Per Square
| 6-10ML
|
Nozzle Model
| Epson Print Head (Industrial Grade)
|
X Axis Folding
| Optional
|
Nozzle Guard
| Have
|
Head Ink Tank
| Can Be Split And Transported Separately
|
Motherboard Configuration
| 8-Core CPU, 4Gbddr Memory
|
Painting Direction
| Vertical
|
X Axis Guide
| 2500mm (Can Be Raised And Lowered)
|
Y Axis Guide
| 4500mm (Can Be Switched Arbitrarily And Used Cyclically)
|
Z Axis Guide
| 170mm
|
Display Screen
| Comes With 11.6-Inch Touch Panel
|
X Axis Effective Stroke
| 2000mm (The Height Can Be Raised And Lowered)
|
Y Axis Effective Stroke
| Unlimited
|
Z Axis Effective Stroke
| 150mm
|
Synchronous Belt
| No
|
Total Body Weight
| 32kg
|
Total Track Weight
| 38kg
|
Ink Tank Capacity
| 400Ml
|
Nozzle Cleaning
| One Key Automatic
|
Wall + Floor Double Color Painting System
| Have
|
Flash Spray Test
| Touch
|
Inkjet Test
| Touch
|
Automatic Nozzle Avoidance
| Have
|
Spirit Level
| Have
|
Print White
| Optional
|
Painted Mode
| Two-Way
|
Gallery Type
| Beautifully Printed Gallery Book + Mobile Hard Disk
|
Picture Processing
| AI Intelligent Image Processing
|
Automatically Block Large Images
| Unlimited Height/Width Size Of Painted Pictures
|
Interrupt Automatic Marking
| Have
|
Auto-Complement
| Have
|
Quiet Zone Calibration
| Have
|
Step Calibration
| Have
|
Nozzle Buffer
| Have
|
Spray Distance
| 0.5-2.0cm
|
Ink Supply Method
| Negative Pressure Automatic Ink Supply
|
Color Processing
| Automatic Color Matching
|
Painted Medium
| All White Walls
|
Integrated Voltage Regulator
| Have
|
Laser Positioning
| Have
|
Magnetic Limit
| Have
|
Automatic White Jump
| Have
|
Battery Life
| Have
|
Power-Off Endurance Time
| About 12 Hours
|
Picture On Demand
| Have
|
Machine Trailer
| Optional
|
Certification
| Green Environmental Protection Certification, National Standard Testing Qualified (Gb18582-2001, Gbt9756-2001), Ce Certification
|
Power Supply
| Ac110V (90-132V)/Ac220V (180-264V) Ac, 47-63Hz
|
Power Consumption
| No Load 20W, Generally 75W, Up To 250W
|
Noise
| Standby<20dba, Drawing <50dba
|
Construction Temperature
| -10°C-60°C (14°F-140°F) 10%-80% Relative Humidity, Non-Condensing
|
Storage Temperature
| -30°C-60°C (-22°F-140°F) 10%-80% Relative Humidity, Non-Condensing
|
Language Switch
| Chinese And English (Customizable)
|
The System Platform
| Windows XP / Win7 / Win8 / Win10
|
>>
