High Quality Hot Plane Leather Embossing Machine for Leather

Product Description

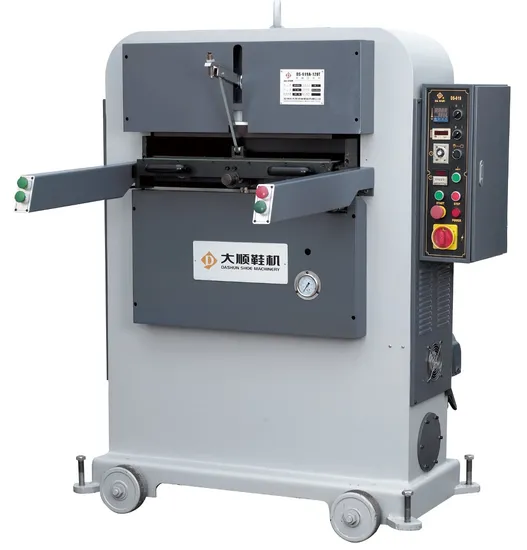

DS-619A-120T Perforating & Embossing Machine for leather
This machine is applicable for perforating and embossing of large area leather piece in shoe and bag manufacturing industries
Its working reaches 500*600mm.
Designed of the advanced hydraulic oil pressure system,
the mold plate has been provided with constant heating function with adjustable temperature.
Equipped with pressure maintaining relay function,it ensures low noise and low energy consumption.
As the working table is able to move in and out automatically, it is able to reduce labor intensity.
The fully enclosed structure design is also able to ensure high security.
It has simple design with easy adjustment and replacement. It is equipped with several
1,Usage
DS619A-120 single-station hydraulic flat embosser adopts heating, pressurization and timing to form embossing for various leathers, the quality of embossing is good and the efficiency is high, and the machine has mobile operation table which insures the operation safe and convenient.
DS619A-120 adopts advanced oil circuit optimization structure design, uses oil pump with high pressure and small flow, which makes the machine have enough pressure and high productivity.

2,Main technical parameters and data

Motor	Y100L1-4, 380V, 3KW		Total pressure of oil cylinder	≤ 120 ton
Oil pump	PV2R1-6		work stroke of oil cylinder	≤ 80mm
Work pressure	≤ 22.2Mpa		Power of electrical heating pipe	8X500W
Work area	500X600m2		Heating temperature	Room temperature~200oC

---
