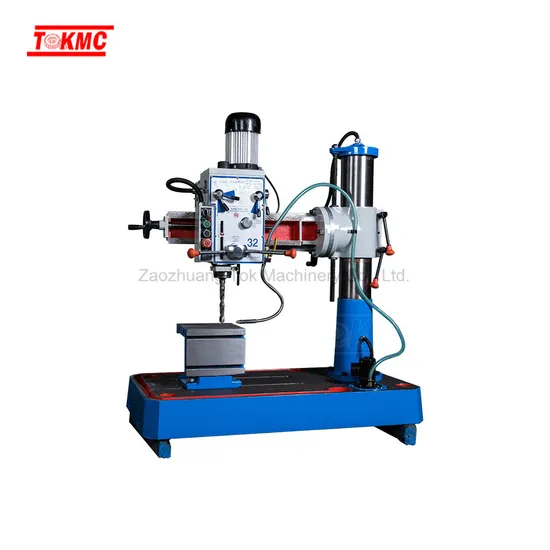

Z3032X7p Coolant System Steel Drilling Machine

Product Description

core drilling machine

Model	Z3032x7/Z3032x7P
Max. Drilling capacity mm	31.5
Max.Tapping capacity mm	Iron 20 steel 16
Distance spindle axis to column line mm	300~700
Diameter of column mm	150
Spindle taper	MT3
Spindle travel mm	130
Spindle speed range r/min	100~1600
Spindle speds series	8
Spindle feeds	0.08,0.14,0.23
Distacne spindle nose to table surface mm	275~680
Dimensions of worktable mm	250x250x250
Dimensions of base mm	1050x550x120 / 1200x625x155
Overall size mm	1235x550x1195 /1235x625x1230
Mian motor power W	750 or 1100
N.W/G.W kg	390/310 580/500
Packing size cm	122x62x128 / 127x69x137

Feature :
Machine speed has a wide range of speed, can be carried out
Maneuvering, manual manipulation, can be easily connected at any time
Or cut off the feed;
Swing arm around the column can be tilted ± 45
The main key components imported processing center processing, fine
High degree of high efficiency, to ensure the quality of the machine stable
Be reliable
Small size, small footprint, full-featured, can be
Widely used in drilling, expanding, reaming and tapping operations.
Standard accessories:
Drill chuck Φ16mm, taper shank sleeve, taper shank post, under the knife iron, box table
Special attachment:
Rack, angle pliers, eye shield

---
