| US$950.00-1,400.00 | 1 Piece (MOQ) |

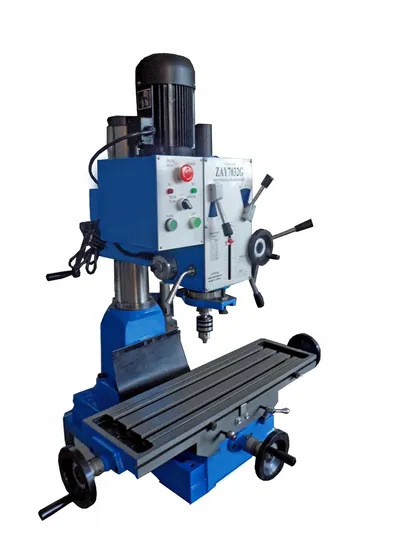

| Model | ZAY7032G | ZAY7040G | ZAY7045G |
| Drilling capacity | Φ32mm(1-1/4") | Φ40mm(1-5/8") | Φ45mm(1-3/4") |
| Face milling capacity | Φ63mm(2-1/2") | Φ80mm(3-1/8") | Φ80mm(3-1/8") |
| End milling capacity | Φ20mm(3/4") | Φ32mm(1-1/4") | Φ32mm(1-1/4") |
| Distance from spindle nose to table | 440mm(17-1/4")(optional 670mm) | ||
| Min.distance from spindle axis to column | 272.5mm(10-3/4") | ||
| Spindle travel | 130mm(5-1/8") | ||
| Spindle taper | MT3 or R8 | MT4 or R8 | MT4 or R8 |
| Step of spindle speed | 6 steps | ||
| Range of spindle speed 50Hz | 80-1250 rpm | ||
| 60Hz | 95-1500 rpm | ||
| Swivel angle of headstock horizontally | 360° | ||
| perpendicularly | ±90° | ||
| Table size | 800×240mm(31-1/2"×9-7/16") | ||
| Forward and backward travel of table | 175mm(6-7/8") | ||
| Left and right travel of table | 500mm(20") | ||
| Motor power | 0.75KW | 1.1KW | 1.5KW |
| Net weight/gross weight | 315kg/365kg | 318kg/368kg | 318kg/368kg |
| Packing size | 770×880×1160mm | ||
| Loading amount/20" container | 36pcs | ||
