Product Description:

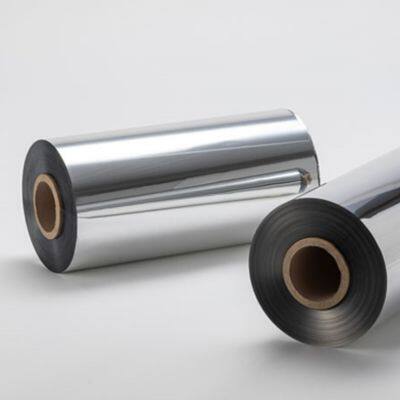

The raw material of aluminum polyester tape is soft aluminum foil and a polyester film, compound with intaglio coating, slitting and rolling when aluminum foil polyester was done; the structure is a layer of aluminum foil in the two sides and a layer of polyester film in the middle. (AL/PET/AL)
Application: Apply to magnetic field with non-electromagnetic or precipitation static, such as communication cables, data cable, coaxial cable, internet cable and shielding of signal cable, can match with coating, it can be used in assemble shielding and grounding when aluminum foil polyester was cut.
Main specifications:
Specification
| Composition
| Elongation （%）
| Tensile strength （Mpa）
| Basis weight （g/m²）
| Peel strength (N/cm)
|
AL
| PET
| AL
|
32μm
| 7μm
| 12μm
| 7μm
| 35↑
| 6.3↑
| 61±10%
| 6.3↑
|
35μm
| 7μm
| 15μm
| 7μm
| 35↑
| 6.3↑
| 65±10%
| 6.3↑
|
36μm
| 9μm
| 12μm
| 9μm
| 35↑
| 6.3↑
| 74±10%
| 6.3↑
|
49μm
| 9μm
| 25μm
| 9μm
| 35↑
| 60↑
| 92±10%
| 6.3↑
|
55μm
| 12μm
| 15μm
| 12μm
| 35↑
| 60↑
| 94±10%
| 6.3↑
|
>>
