Passenger Elevator Lifts FUJI Observation Panoramic Elevator Auto Lift/Lifter

Product Description

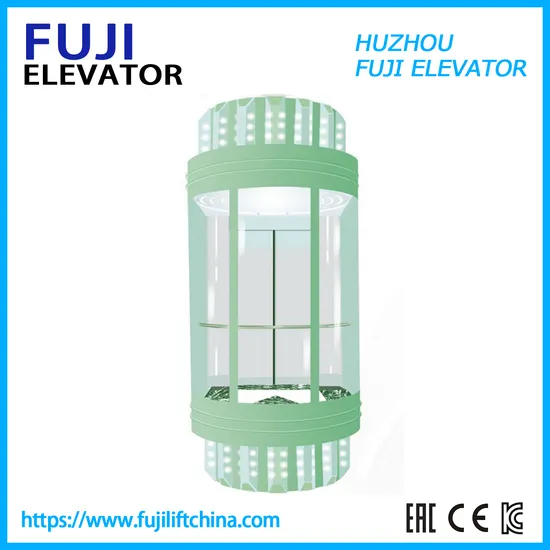

Sightseeing Elevator
A vertical elevator powered by a motor, equipped with a box-like pod, used in multistory buildings to transport people or goods. One or several sides of the shaft wall and car wall are transparent materials, passengers in the elevator ride, can see the car outside the scene.
The shaft and car wall have at least one side transparent, passengers can see the car outside the scene of the elevator. It is mainly installed in hotels, shopping malls and high-rise office buildings, with transparent materials on one or several sides of the well wall and the same side of the car wall. Passengers can watch the scene outside the car while riding in the elevator.
At present, there is no need to dig bottom pit and self-built screw sightseeing elevator in the market. The design is simple and beautiful. This kind of elevator has no special requirements on civil construction.

Loading capacity	Rated speed	Door open type	Door opening size(W x H)mm	Car size (Ax B) mm	Hoist way size(AH x BH) mm	Machine room size
						PIT	OH	(W x D x H)mm
450kg	1.0/1.5 /1.75	Center	800x2100	1400x850	2000x1550	1500/1600	4500	2500x3200x2500
630kg	1.0/1.5 /1.75	Center	800x2100	1400x1100	2000x1750	1500/1600	4500	2500x3600x2500
800kg	1.0/1.5 /1.75	Center	800x2100	1400x1350	2000x2000	1500/1600	4500	2500x3800x2600
1000kg	1.0/1.5 /1.75	Center	900x2100	1600x1400	2200x2150	1500/1600	4500	3000x4000x2600
1250kg	1.0/1.5 /1.75	Center	1100x2100	2000x1400	2600x2150	1500/1600	4500/4700	4000x4500x3000
1350kg	1.0/1.5 /1.75	Center	1100x2100	2000x1500	2600x2250	1500/1600	4500/4700	4000x4500x3000
1600kg	1.0/1.5 /1.75	Center	1100x2100	2000x1750	2600x2500	1500/1600	4500/4700	4000x4500x3000

---
