Stainless Steel Dry Powder Mixing Machine CH-100 Available to Liquid/Moisture

US$6,757.00-88,678.00 1 Piece (MOQ)

Basic Info.

Model NO.
CH
Application Area
Chemical
Certification
CE, ISO, GOST, SONCAP, CCC, API
Condition
New
Main Material
Stainless Steel
Mixing Drum Shape
Ribbon Mix
Stirring Type
Gravity
Working
High Speed Mixer
Name
Ribbon Mixer
Other Name
Trough Mixer
Material
Stainless Steel
Industry of Application
Checmial or Pharma Powder
Capacity
100kg
Certificate
Ce
Construction Material
Stainless Steel
Mixing Time
6
Machine Structure
Slot
Control Method
Automatic Digital Control Panel
Mixer Type
Powder Mixer
Layout Type
Horizontal
Operating type
Cycle Operating
Transport Package
Wooden Case
Specification
CE SGS SONCAP
Trademark
ck
Origin
China
HS Code
8479820090
Production Capacity
200sets Per Month

Product Description

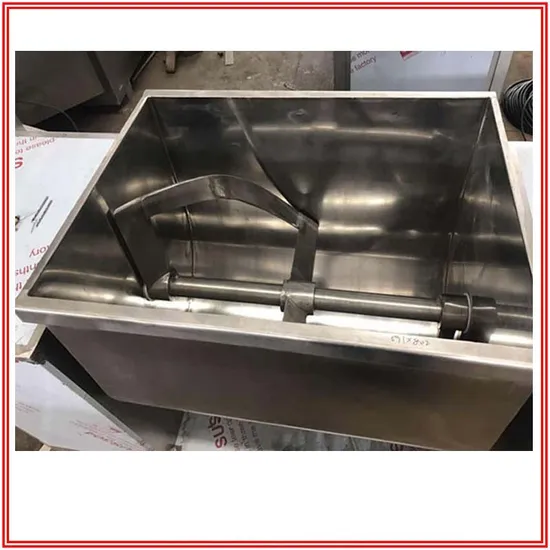

Mixer introduction
CH type mixer is widely used for mixing powder or wet raw materials and can make the main and auxiliary raw materials with different proportion uniform.
Groove mixer for mixing powder or paste material, so that the different quality of material mixed. Is a horizontal trough single paddle mixing, stirring paddle was shaking through the shaft, easy to clean. Contact with the object of the whole made of stainless steel, it has good corrosion resistance, mixing tank can automatically flip down to discharge the material.
Mixing machine Characteristics
The places where contact the raw materials are made of stainless steel.The gap between blades is small and there is no dead corner. At the ends of stirring shaft,there are seal devices.It can prevent from the raw material leakage.
Material to be dried
It is widely used for pharmaceutical,chemical,foodstuf f and so on industries
Technical Parameter

capacity(L)		 100 150 200 400
power of motor(kw) 2.2 3 3 5.5
speed of stirring(rpm) 24 24 24 24
inclined(×) 105 105 105 105
weight(kg) 350 500 650 1200
overall dimensions(mm) 1400×500×1000 1600×600×1100 1800×700×1200 2000×820×1460

The bulk density of material is made based on 0.6g/cm3, Please point out if it's over .
