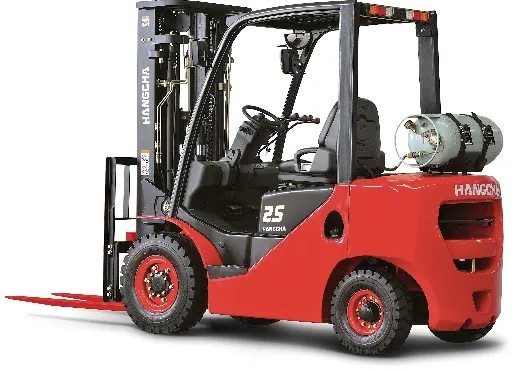

Hangcha Xf Series Euro 5 LPG 2.5ton 3ton Forklift

Product Description

Hangcha X series 1.5-3.8ton gasoline/lpg forklift truckThe X series is the new series of internal combustion counterbalance forklift truck developed by Hangcha independently, adopting the world advanced technologies based on the original products. Through the comprehensive upgrading of appearance molding, energy conservation, environmental friendly, comfort, security and reliability, it will become the world-class forklift truck which can meet your overall demands.Standard specification*hydraulic( automatic) transmission*duplex mast, also called 2 stage mast, wide view *lifting height 3 meters *fork length 1070mm*pneumatic tyre
*LED display
*hand grip
*oil-water separator*with seat, belt,horn,working lamps, mirror etc
Options*2 stage or 3 stage mast,lifting height 3-7 meters*side shifter *solid tyre *cabin, heater, air conditioner
*extended fork length 1070mm-2570mm etc longer
*others...

1	Manufacturer		HANGCHA GROUP CO., LTD
2	Manufacturer's type designation		CPQD15-XRW21 CPQYD15-XRW21 CPYD15-XRW51	CPQD18-XRW21 CPQYD18-XRW21 CPYD18-XRW51	CPQD20-XRW22 CPQYD20-XRW22 CPYD20-XRW52	CPQD25-XRW22 CPQYD25-XRW22 CPYD25-XRW52	CPQD30-XRW22 CPQYD30-XRW22 CPYD30-XRW52	CPQD35-XRW22 CPQYD35-XRW22 CPYD35-XRW52	CPQD38-XRW22 CPQYD38-XRW22 CPYD38-XRW52
3	Drive		gasoline/lpg	gasoline/lpg	gasoline/lpg	gasoline/lpg	gasoline/lpg	gasoline/lpg	gasoline/lpg
4	Operator type		Seated	Seated	Seated	Seated	Seated	Seated	Seated
5	Rated capacity/rated load	Q (kg)	1500	1750	2000	2500	3000	3500	3800
6	Load centre distance	c (mm)	500	500	500	500	500	500	500
7	Service Weight	kg	2720	2880	3450	3850	4380	4750	4950
8	Tyres		Pneumatic	Pneumatic	Pneumatic	Pneumatic	Pneumatic	Pneumatic	Pneumatic
9	Tyre size, front		6.5-10-10PR	6.5-10-10PR	7.00-12-12PR	7.00-12-12PR	28×9-15-14PR	28×9-15-14PR	28×9-15-14PR
10	Tyre size, rear		5.00-8-10PR	5.00-8-10PR	6.00-9-10PR	6.00-9-10PR	6.50-10-10PR	6.50-10-10PR	6.50-10-10PR
11	Height, mast lowered	h1 (mm)	1995	1995	1999	1999	2054	2169	2169
12	Free lift	h2 (mm)	155	155	160	160	165	170	170
13	Lift	h3 (mm)	3000	3000	3000	3000	3000	3000	3000
14	Height, mast extended	h4 (mm)	3955	3955	4045	4045	4140	4140	4140
15	Height of overhead guard (cabin)	h6 (mm)	2120(2220)	2120(2220)	2120(2220)	2120(2220)	2150(2250)	2150(2250)	2150(2250)
16	Overall length	l1 (mm)	3205	3240	3615	3680	3770	3850	3880
17	Length to face of forks	l2 (mm)	2285	2320	2545	2610	2700	2780	2810
18	Overall width	b1/b2(mm)	1090/1485	1090/1485	1155/1595	1155/1595	1225/1725	1225/1725	1225/1725
19	Fork dimensions	s/e/l (mm)	35×100×920	35×100×920	40×122×1070	40×122×1070	45×122×1070	50×122×1070	50×122×1070
20	Turning radius	Wa (mm)	2035	2060	2270	2330	2400	2440	2480
21	Minimum pivoting point distance	b13 (mm)	600	600	780	780	810	810	810
22	Travel speed, laden/unladen	km/h	16.5/17.5	16.5/17.5	20/21	20/21	18/19	18/19	18/19
23	Lift speed, laden/unladen	m/s	0.5/0.55	0.5/0.55	0.55/0.60	0.55/0.60	0.46/0.50	0.38/0.45	0.38/0.45
24	Lowering speed, laden/unladen	m/s	0.45/0.50	0.45/0.50	0.45/0.50	0.45/0.50	0.45/0.50	0.35/0.40	0.35/0.40
25	Engine		K21	K21	K25	K25	K25	K25	K25

---
