305m Cat5 Cat5e CAT6 Cat6e CAT6A Cat7 Ethernet Cable

Product Description

Product Description
Applications:
10Base-T, 100Base-T4, 100Base-TX, 100Base-VG-ANYLAN, 155Mbps-ATM, 622Mbps ATM, 1000Base-T

Standards:
YD/T 1019-2013, ISO/IEC11801, ANSI/TIA/EIA-568-C, UL444(Apply to Indoor Data Cable), IEC61156

Characteristics:

Physical/Electrical characteristics
Differential Phase Delay(Max)		45ns/100m	Impedance		4-100MHz 100±15Ω
Mutual Capacitance(Max)		5. 6nF/100m	D. C Resistance(Max)		9. 5Ω/100m at 20ºC;
Dielectric Strength Between Conductors(Min)		2.5kV/2s	Permitted Bend Radius		No less than eight times the cable diameter
Transmission Performance
Frequency (MHz)	Attenuation (Max) (dB/100m)	NEXT(Min) (dB/100m)	ELFEXT(Min) (dB/100m)	RL (Min) (dB)	Phase Velocity (Min) (m. /s)	Phase Delay (Max) (ns/100m)
4	4.1	53.3	49	18. 8	0. 604c	552
8	5. 8	48. 8	42.9	19. 7	0. 610c	547
10	6. 5	47. 3	41	20	0. 612c	545
16	8. 2	44.2	36. 9	20	0. 614c	543
20	9. 3	42.8	35	20	0. 615c	542
25	10. 4	41. 3	33	19. 3	0. 616c	541
31. 25	11. 7	39. 9	31. 1	18. 6	0. 617c	540
62.5	17. 0	35. 4	25. 1	16. 5	0. 619c	539
100	22.0	32.3	21	15. 1	0. 620c	538

Operating Temperature:-20ºC~+60ºC
Product Description:

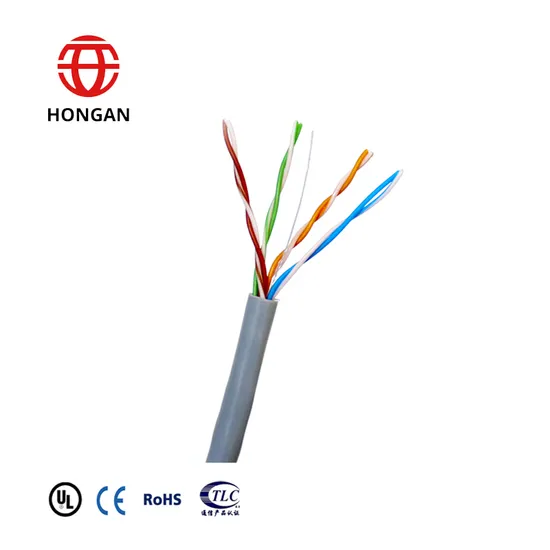

UTP CAT5e HSYV5e (Category 5E, PE Insulation, PVC jacket)

Structure Parameters

Type	Wire Gauge	Pairs	Diameter(mm)
HSYV5e	24AWG	4	5. 0

Note 1. LSZH and other material can be used as jacket according to the customer's demands.
Product picture:
Company introduction:
HONGAN GROUP is located in Shandong China. We Specialized in producing optical fiber cable, network data cable and multi pair telephone cables more than 30 years, also supply EPON , GPON, data center solutions and related equipments.

Our products have passed ISO9001 ,ISO14001 and OHSAS18001, meet the requirements of CE, RoHS, TLC and UL, and have been exported to Thailand, Cambodia ,Burma, Vietnam, Laos, Europe, Africa etc., more than twenty countries.
Advanced production lines:
Our certificates:
FAQ

1. Are you the real factory?

Yes,our factory is located in Shandong Province, near to Qingdao Port,having more than 30- years munufature experience. Welcome to visit.

2. What is the conductor material?

All the cable conductor is made of oxygen-free bare copper. If you need CCA, CCS or other material conductor, please tell the customer service staff.

3.What is your main products?

Our main products are outdoor and indoor fiber optic cable, FTTx cable, network cable and telephone cable.

4.What is your payment term?

30% in advance, 70% before delivery.

---
