3000 Ton Water Based Solvent Based Color Paint Mixing Station Making Machine Wall Paints Waterproof Paint Anti-Corrosion Emulsion Paint Production Line

Product Description

Product Description 3000T/year water-based solvent paints Acrylic emulsion latex paint production line
This water /solvent paints production line includes: liquid feeding tank, powder feeding tank, vertical sand mill (or horizontal sand mill),stainless steel tank, dispersion tank, paint mixing tank, bag filter, filling machine, air compressor , Vacuum pumps, capping machines, etc.
Water paint or solvent paint making line usually includes the followed production steps:
1. Raw material preparation: Prepare the corresponding powder and liquid raw materials according to the type of paint produced.
2. Dispersion: Add the prepared raw materials into the dispersing equipment and stir to ensure that the pigments and fillers are evenly dispersed.
3. Grinding: Use a vertical sand mill or a horizontal sand mill to grind the dispersed raw materials to the required fineness. The grinding process tears the pigment lumps and air bubbles out through shear force to form a color paste.
4. Color matching: Mix the ground color paste with resin solution (or water-based acrylic emulsion), additives, etc., adjust the viscosity and color, and prepare the colored paint.
5. Inspection and filtration: Inspect the toned paint to ensure that its performance meets the requirements. Then filter to remove the unground pigment particles and impurities.
6. Packaging: Package the filtered paint according to regulations to complete the production process.
2. The raw materials contacting part is stainless steel 304, which can fully meet the production needs of water-based or oil-based paint.
3. Vacuum feeding, fast speed and less dust.
4. The equipment has a powder feeding system, a liquid feeding system, and an additive feeding port.
5.Frequency converter speed control,microcomputer control system,automatic filling measurement and capping device.
6.The biggest advantage:it can be widely used to make lots of different kinds of paints or coatings or other construction materials.It can be used to produce a variety of paint and paint products to fully meet the market needs of customers.
1)Water based acrylic emulsion/latex paints (1 to 3 years, 3 to 5 years, 5 to 8 years, 8 years or more of various grades of internal and external wall latex paints, primers, etc.). There are matt latex paint, bright latex paint, elastic latex Paint etc.)
2)Paste type (it can produce high-gloss imitation porcelain paint, crystal tempered paint, interior wall putty paste, exterior wall putty paste, elastic putty paste, etc.)
3)Glues (can produce master glue, interior wall glue, exterior wall glue, gypsum powder glue, talcum powder glue, polymer glue, special glue for black and white cement, etc.)
In addition, the line can produce the following products by adding auxiliary equipment:
1)Putty powder (can produce interior wall putty powder, exterior wall putty powder, elastic putty powder, flexible putty powder, etc.)
2)Mortar (can produce thermal insulation mortar, bonding mortar, plastering mortar, etc.)
3)Real stone paint (can produce various grades of real stone paint, rock chip paint, primer, top paint, etc.)

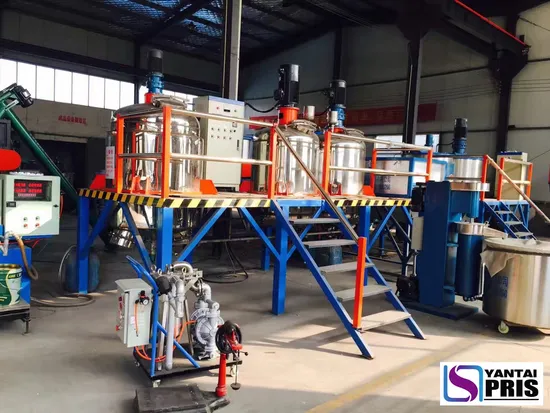

Detailed Photos

Applications 1. Interior and exterior wall paint
2. Waterproof paint
3. Anti-corrosion paint
4. Wood paint
5. Metal anti-rust paint
6. Fire-retardant paint
7. Real stone paint, texture paint
8. Road marking paint

Packaging & Shipping
