Small Feed Flat Die Pellet Machine Biomass Sawdust Feed Pellet Machine

Product Description

Small Feed Flat Die Pellet Machine Biomass Sawdust Feed Pellet Machine
Raw Material:
The materials such as the rice husk, sunflower husk, peanut shell and other fruit shell; branch, trunk, bark and other wood waste; a variety of crop straws; rubber; cement, ash and other chemical materials.
Product introduction:
1. The flat die pellet machine is mainly used for the pressing of animal feed.
2.The device is light,easy tomove
3.ldeal choice for users of homes and small-scale farms
4.The compressed pellet is healthier for poultry and livestock, such as chicken, duck,fish,pig,cattle etc.
Technical details:
Pelletizing is the process of making waste materials into solid fuel. Wood pellet can be made from any type of Agro-Forestry waste: Groudnut-shell, Sugarcane Biogases,Caster Shells/Stalk, Sawdust,Coffee Husk,Peddy Straw, Sunflower Stalk, Cotton Stalks, Cotton Stalks, Tobacco waste, Mustard Stalk, Jute Waste, Bamboo Dust, Tea waste, Wheat Straw, Palm husk, Soybeans husk, Coir Pitch Barks/Straws, Rice Husks, Forestry waste, Wood Chips and many other Agro wastes. But the content should be less than 12%, grain size is below 5*5mm.
Questions beofre sending price list:
1.What's your raw materials ?
Corn , Wheat or Soybean ,with grass
2. Please send us your raw materials photo.
We will confirm whether need to crusher machine
3. Capacity Per Hour you want to ?
We have 80-100kg/h , 100-300kg/h , 300-500kg , 500-700kg/h , larger 1000kg
4. Your voltage ?
380V ,50HZ, 3Phase or others ? we will design the suitable motor for you .
5.How much the mositure of your raw material?
10%-20%,20%-30%,30%-40%,or others ?

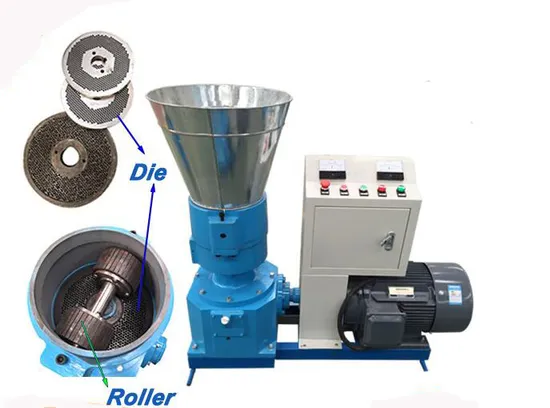

Model plate:
The diameter of the finished pellet are depends on the diameter of the model plate hole, and we can offer the diameter from 2.5m-8mm.The Model plate is easy to change. You can get different size(2.5-8mm) pellet with one machine.
Technical information:

Model	Power puissance	Capacity(feed)(kg/h)	Capacity(fuel)(kg/h)	Weight(kg)	Size(mm)
WSKL-125	2.2kw-3kw	75-100	40-60	75kg	650*300*600mm
WSKL-150	3kw	90-120	70-80	95kg	750*400*820mm
WSKL-200	7.5kw	200-300	100-150	110kg	900*400*750mm
WSKL-230	11kw	300-400	200-300	150kg	1180*580*880mm
WSKL-260	15kw	400-600	300-400	135kg	1200*500*1070mm
WSKL-300	22kw	600-800	500-600	220kg	1250*520*1070mm
WSKL-360	22kw	800-900	700-800	350kg	1270*520*1070mm
WSKL-400	30kw	1000-1200	800-1000	600kg	1470*500*1150mm

Advantages:
Power :You can choose the gasoline engine driven, diesel engine driven,electric motor driven or PTO system for engine.
Quality:The machine adopts speed-adjust feeder to control the feeding capacity, and use big diameter modulator to make materials fully cured, and make the pellet smoother.The formation rate reaches 98%
Model:The Model plate is easy to change. You can get different size(2.5-8mm) pellet with one machine.
Final Pellet: This machine can both produce fuel and feed.

---
