Product Details
Product Description
Product Description

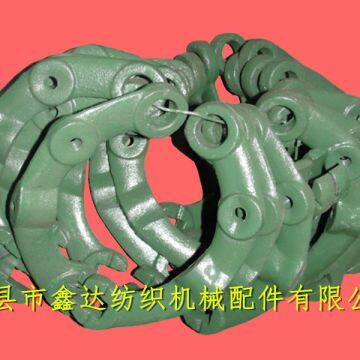

We provide all kinds of textile accessories accessories of old shuttle loom, GA615 type, let off device, common vulnerable accessories, brown frame heald lifting accessories, shuttle feeding buffer parts. The products are mainly cast iron products, which are processed by original lathe and made of gray iron or nodular iron. GA615 Shuttle Loom Spare Parts,The old loom adopts reciprocating weft insertion and uses shuttle as carrier, so it is called shuttle loom.
GA615 loom, loom accessories, textile machinery accessories - improved type F22 reed connector, inner hole 38mm, width 82mm, connected with rocker 3201, technical requirements: clearance with rocker: 0.2mm for major repair, 0.3mm for minor repair.
The concave wear out of the plane shall not exceed 0.3mm, the contact surface shall be flat, and it shall be replaced if the abrasion exceeds 0.4mm.
GA615 loom, loom accessories, textile machinery accessories wholesale, GA615 loom, loom accessories, textile machinery accessories processing manufacturers, GA615 loom,shuttle loom accessories, textile machinery accessories price quotation - Huixian Xinda Textile Machinery Accessories Co., Ltd.
GA615 loom accessories (apron sliding box) is composed of 2600-9 / 10, 2676, 2677, 2681 and 2682. The overall design device (loom accessories) is simple in design and convenient in installation. Through the overall stress to reduce the pressure on the buffer apron (buffer ring), the bending radian of the apron Guide plate and sliding box of GA615 loom is reduced.
The end with obvious radian is close to the shuttle board 3310 The distance between the two sliding boxes 2677 and 2676 is fixed at 21-22mm and perpendicular to the reed frame 3222
>>
