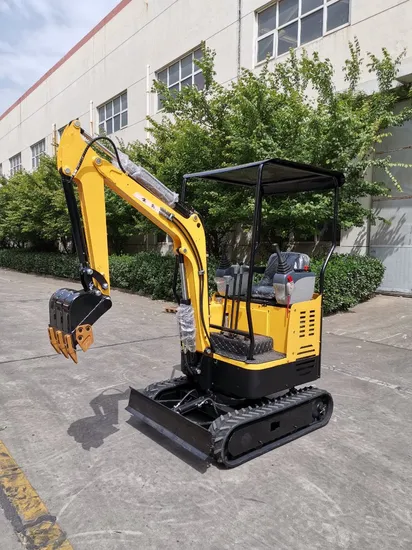

Mini Small Hydraulic Crawler Digger Excavator with Yanmar Engine Price for Sale

Product Description

Product Description

1.The double-cylinder air-cooled engine has high power,low fuel consumption,smooth operation and low noise. 2.Optional design of boom arm can easily achieve small space operation
3.Simple operation mode,convenient maintenance,perfect technical support and high reliability,high quality price-per-formance ratio and low use cost
4.The whole machine is welded with low-alloy steel,and after aging treatment,the rigidity and stability of the whole vehicle KV series mini excavator

Performance parameters	unit	specification
Self weight	kg	1500
Standard Bucket Capacity	m³	0.04
Working device form		Backhoe/Front shovel
engine model		Changchai 390/Yanmar 3TNV70
Rated power/speed	kw/rmp	Changchai 20/Yanmar 14.6
System pressure	Mpa	16
Swing speed	rmp	11
Maximum climbing angle	°	35
Walking speed (high speed/low speed)	km/h	1.5
fuel tank volume	L	18
size	unit	specification
wheelbase	mm	1100
total track length	mm	1300
Platform ground clearance	mm	400
Chassis width	mm	1100
Track width	mm	180
Track material		rubber track
full vehicle height	mm	2200 (retracted)
The scope of work	unit	specification
Maximum ground excavation radius	mm	2400
Maximum excavation depth	mm	1850
Maximum excavation height	mm	2740
Maximum unloading height	mm	1850
Maximum vertical excavator depth	mm	1450
Minimum radius of gyration	mm	1200
Maximum lifting height of bulldozer	mm	150
Bulldozer maximum digging depth	mm	180
Bulldozer maximum digging depth	mm	180

---
