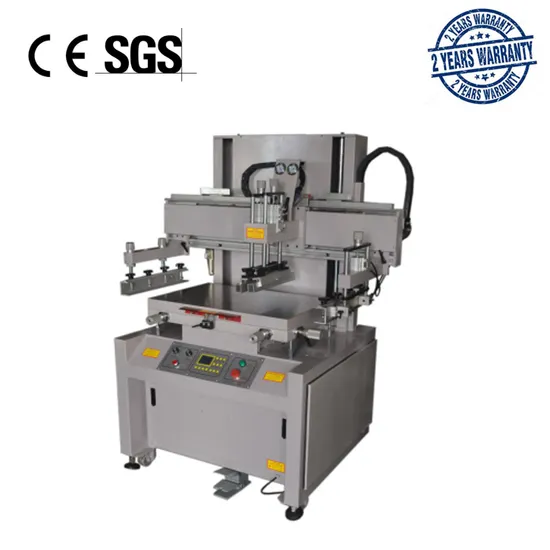

High Precision Flat Vertical Screen Printing Machine (FB-6080ST)

Product Description

High Precision Flat Vertical Screen Printing Machine (FB-6080ST)
Application:
Be applied to the flat printing for glass, CD, nameplate, stickers, credit card, Ceramic colored paper, wooden toy puzzles,PCB,SMT tin ointment, and membrane switches in electronic industry .It is also applicable to the flat printing such as golden and silver cardboard ,metal sheet, and other products with the material of PVC, which have high requirement in overprinting.

Description:
1.vertical structure with the motor driven printing plate goes up and down vertically, and the motor driven print head moves left/right.
2. Single chip controlled circuit, printing and plate goes up and down using independent driving source.
3. Pneumatic controller controls the printing knife moves up and down, photocell eye controls the stroke, which is independent to tune.
4. Set manual/semi-automatic /automatic three modes , the break time of printing is digital controlled.
5. Independent designed head rising and down setting, makes it convenient to clean the scraping blade/reclaiming blade,screen plate during loading and unloading.
6. Double guide column master the clamps arm, and install the adjusting device to adjust the distance between plates at the same time, which is convenient to tune.

Parameter:
1. The machine controlled by SCM.
2. Adopt "Omron" relay, "chint"AC contactor , RIKO Photoelectric eye switch produced in Taiwan.
3. Adopt "Cheng Bang" Gear Motor from Taiwan, driven by Variable printing.
4. Printing scraper and reclaiming blade controlled by Japanese SMC brand pneumatic component.
5. Moves up and down/left and right during printing, controlled by Taiwan ABBA Precision guide rod.
6.Left/right scratchers adopt HIWIN precision liner guide from Taiwan.
7.Printing plate adopts pneumatic stainless steel and suction system which is produced by Shanghai State-owned factory.

Model	FB-6080ST
Max printing area	600x800mm
Size of printing table	700x900mm
Max. frame size	900x1200mm
Air pressure	4.0~6.0 kfg/cm2
Printing Thickness	≤25mm
Max printing speed	800(PCS/H)
Rated voltage/Power	380V/50HZ /2.5KW
Dimension	1430x1180x1580mm
Weight	650kg

---
