High Speed Automatic Nail Wire Drawing Machine Oto Pulley Type

Product Description

High speed automatic nail wire drawing machine OTO pulley type
Product Description
The pulley type continuous wire drawing machine has the characteristics of simple structure, low cost, and easy operation, and it is suitable for drawing a variety of medium and thin fiber material, especially for mild steel wire, galvanized iron wire, steel head wire, stainless steel wire, rubber hose steel wire, spring steel wire, rod welding wire and copper wire aluminum rod, etc. Scope of application: gas-protection welding wire, welding electrode, stainless steel wire, galvanized iron wire, bullet and hard wire, copper wire, and metal product wire, etc.
a. Usage:
The set of the machine is ideal equipment drawing wire stock of high, medium and carbon steel, as well as copper, aluminum and alloy. The machines are applied to drawing wire in the factories such as wire-steel factory, metal mesh factory and nail making factory etc.
b. Structure:
The equipment consists of main reduction box.die casing, wheel frame, sash brace and electrical control system. The spinning drawing blocks are driven by JZT series motor, with gear coupling runs changeful gears to reduce speed. The drawing blocks are vertically fixed in sealed box body. The gear pairs are lubricated with oil.
In order to lower residual heat on the surface of the block, the cooling means is installed in interval of the block. To reduce its working temperature, the machine is soaked in cooling water.
c. Material:
Suitable for Drawing Welding rod; welding Wire (gas protection welding wire and submerged arc welding wire); steel wire (medium, low carbon steel wire, stainless steel wire); Wire and cable (copper wire, aluminum wire) and other metal wires
* Various combined drawing equipment can be designed according to the customers' requirements
Product Parameters

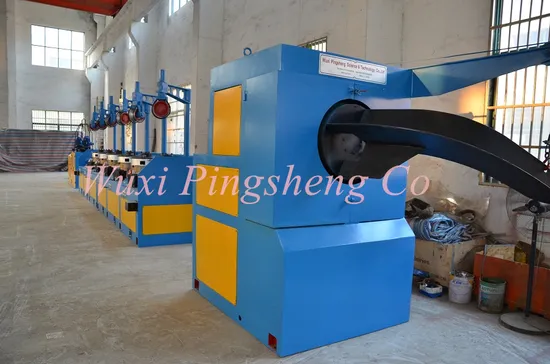

Detailed Photos
Layout


Company Profile
1. We have gotten ISO9001:2008 standard and certificate
2. Company established year: 1985
3. Company location: Wuxi city, 125km away from Shanghai
4. FOB port: Shanghai
5. Business type: Manufacturer
6. Number of employees: 100-200
7. Welcome to visit us, we will pick you up at Shanghai airport or other place near Wuxi


Website: pingsheng1985.en.made-in-china.com or pingsheng1985.en.made-in-china.com
Add: 98-1, Nankai Road, Industrial zone, Shuofang, Xinwu District, Wuxi, Jiangsu Province, China.
WUXI PINGSHENG SCIENCE&TECHNOLOGY CO. LTD.

---
