Product Details
Product Description
Product Description
Product Description

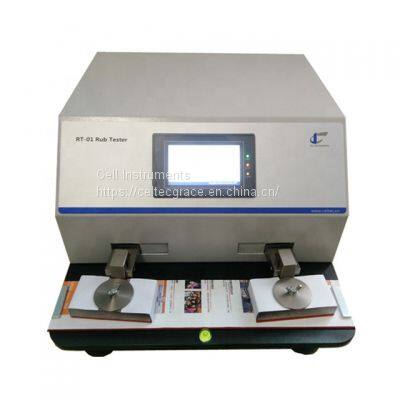

Rub tester is used to evaluate the scuffing or abrasion resistance of printed or coated surface of paper, paperboard, film,laminates, substrates, etc.
Working principle
Rub tester is a motor-driven device for moving a weighted test specimen over the printed or unprinted sample through an arc of 57mm for a preset number of strokes.
Rub tester conforms to TAPPI T830 and ASTM D5264 Standard Practice for Abrasion Resistance of Printed Materials.
Rub Pressure
| 8.9 N(2lb); 17.8N(4lb)
|
Number of samples
| 1~2
|
Rub Speed
| 20~120 cpm
|
Power Supply
| AC 100~ 240V 50Hz
|
Standard
| TAPPI T830 ASTM D5264
|
Control
| PLC and HMI touch screen
|
Manufacturing Technique
1. PLC controlled and human-machine interface operated
2. Five test modes available, dry rub, wet rub, wet bleed or transfer, wet smear and functional rub
3. Test speed free setting between 20~120 cpm
4. Dual stations arc movement structure
5. Buzzer reminding after test is finished
6. Precious rub circle control
7. TAPPI T830 and ASTM D5264 conformed
Packing & Delivery
Plywood carton, EVA&wrapping film
