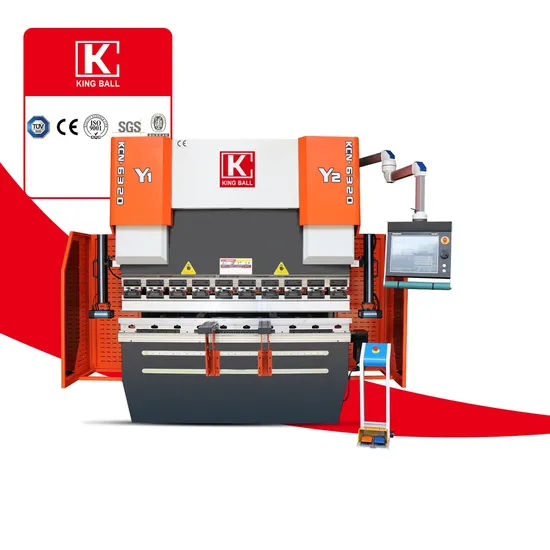

Da53t Hydraulic Electric Sheet Bender

Product Description

Screen	10.1" TFT Colour LCD display	15" TFT Colour LCD display	17" TFT Colour LCD display	17" TFT Colour LCD display
Resoluntion	1024 x 600 pixels, 32 bit colour	1024 x 768 pixels, 32 bit colour	1280 x 1024 pixels, 16 bit colour	1280 x 1024 pixels, 32 bit colour
Maximum axes	Up to 4 +1 axes ()	Up to 4 +1 axes	Up to 8 +1 axes	Up to 8 +1 axes
Program method	numerical + 2D graphical (optional)	numerical + 2D graphical	numerical + 2D modular	numerical + 3D modular
Touch sensor	Full touch screen control (PCT-touch)	Full touch screen control (PCT-touch)	Full touch screen control (IR-touch)	Full touch screen control (IR-touch)
Storage capacity	1 GB	1 GB	1 GB	2 GB
Product and tools memory	256MB	256MB	256MB	256MB
Networking	/	Optional	Standard Windows® networking	Standard Windows® networking
Bend sequence calculation	/	Standrad	Standrad	Standrad
Offline software	Profile-53TL	Profile-58TL	Profile-TL	Profile-T3D
Tandem capability	Optional	Optional	Optional	Optional
Language	BR, CN, CZ, DK, NL EN , FI, FR,DE, GR, HU, IT JP , KR,LT, PL,PT, RO, RU, SI, ES, SE, TR	BR, CN, CZ, DK, NL EN, FI, FR,DE, GR, HU , IT JP, KR, LT, PL,PT, RO, RU, SI, ES, SE, TR	BR, CN, CZ, DK, NL EN, FI, FR,DE, GR, HU, IT JP, KR, LT, PL,PT, RO, RU, SI, ES, SE, TR	BR, CN, CZ, DK, NL EN, FI, FR,DE, GR, HU, IT JP, KR, LT, PL,PT, RO, RU, SI, ES, SE, TR

Parameters of pure electric press brake

Full Servo CNC Press Brake			3012	4016	6020	8025	10032
Capacity		kN	300	400	600	800	1000
Max. Bending Length		mm	1250	1600	2000	2500	3200
Between Columns		mm	800	1200	1600	2100	2600
Max. Shut Height		mm	480	480	480	480	480
Slide Stroke		mm	200	200	200	200	200
Throat Depth		mm	250	250	350	350	400
Down Speed		mm/min	200	200	200	200	200
Pressing Speed		mm/min	0-30	0-30	0-30	0-30	0-30
Return Speed		mm/min	200	200	200	200	200
Main Motor Power		kW	18	7.5*2	18*2	28*2	41*2
X axis stroke		mm	500	500	500	500	500
X axis speed		mm/s	300	300	300	300	300
R axis stroke		mm	200	200	200	200	200
R axis speed		mm/s	60	60	60	60	60
Outline Size	L	mm	1700	2500	2500	3000	4500
	W	mm	1450	1750	1750	1750	1920
	H	mm	2400	2500	2600	2600	2700
Weight		kg	3000	4500	5500	7200	10500

Main Ball Screw Compared to mainstream electro-hydraulic servo press brakes, our motor's power consumption adapts to the load, saving more energy and generating greater economic benefits. Main Motor
The servo motor, in conjunction with the synchronous toothed belt and ball screw transmission, enables precise vertical movement of the machine beam. This precision is controlled by the advanced servo system, offering you unmatched speed and accuracy in your operations.
Our ServicePre-sales Services:1. Inquiry and consulting support
2. Sample testing support
3. Factory visits
After-sales Services:1. Two-year warranty period
2. Training on installation and operation of the brake press machine
3. Engineers available for overseas machinery servicingContact Information Ms. Linda ZhangCustomer Manager
FAQ
1. Can you supply the relevant documentation?
Yes, we can provide most documentation including Certificates of Analysis/Conformance, Insurance, Origin, and other export documents as required.
2. What is the average lead time?
For machines in stock, the lead time is within one week. For mass production, it ranges from 20-35 working days after receiving the deposit payment.
Lead times begin when (1) we receive your deposit, and (2) we secure your final product approval.
If our lead times conflict with your deadlines, please discuss your requirements with our sales team. We strive to accommodate your needs and, in most cases, can do so.
In most cases, we are able to accommodate your needs.
3. What kinds of payment methods do you accept?
Payments can be made to our bank account, via Western Union or PayPal: 30% deposit in advance, 70% balance against the copy of B/L, or through an irrevocable LC at sight.Irrevocable LC at sight.
4. What is the product warranty?
We guarantee our materials and workmanship. Our commitment is to your satisfaction with our products. Regardless of warranty status, we will address and resolve all customer issues to your satisfaction.
Our company is dedicated to addressing and resolving all customer issues to everyone's satisfaction, whether within warranty or not.
5. Do you guarantee safe and secure delivery of products?
Yes, we always use high-quality export packaging. We also utilize specialized hazardous goods packing and validated cold storage shippers for temperature-sensitive items. Please note, specialist and non-standard packing may incur additional charges.
6. How about the shipping fees?
Shipping costs depend on the method chosen. Express is the fastest but most expensive. Sea freight is best for large quantities. Exact freight rates will be provided based on details of amount, weight, and shipping method. Contact us for further information.

---
