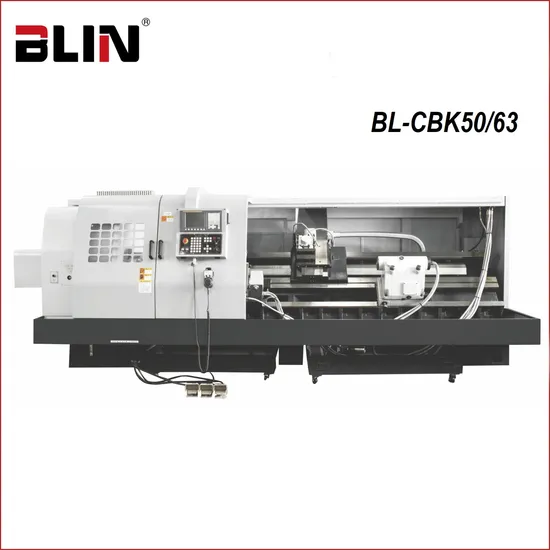

Bochi Economic CNC Lathe Machine Tool with Turret

US$23,800.00-24,800.00 1 Piece (MOQ)

Basic Info.

Model NO.
BL-CBK63
Type
Horizontal Lathe
Processing Accessory
Chuck CNC Lathe
Guide Rail
Horizontal Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Electric
Controlling Mode
CNC
Automatic Grade
Semiautomatic
Setting Mode
Floor-type
Precision
Normal Precision
Certification
CE, ISO 9001
Condition
New
Max. Swing Dia. Over Bed
630mm
Max. Swing Dia. Over Slide
445mm
Max. Turning Length
1000/800mm
Max. Turning Dia.
500/400mm
Spindle Bore
84mm
Spindle Type
A1-11
Spindle Speed
3 Class Gears L:20~210 M:50~525 H:155~1600
Spindle Motor Power
11kw
X/Z Axes Rapid Moving Speed
8/8 M/Min
Spindle Chuck Size
12′′
X Axes Travel
350/270mm
Z Axes Travel
1000/800mm
Positioning Accuracy(X/Z)
0.026/0.036mm
Repeat Positioning Accuracy(X/Z)
0.01/0.013mm
Tool Turret Type
Vertical 4/Horizontal 6 Station
Transport Package
Plywood Case/Steel Pallet
Specification
3100*1900*1900mm
Trademark
BLIN
Origin
China
HS Code
8458110090
Production Capacity
480 Unit/Year

Packaging & Delivery

Package Size
250.00cm * 320.00cm * 250.00cm
Package Gross Weight
250.000kg

Product Description


- 45°slant bed, hard box guideway
- Bed adopt China best high strength compound resin sand cast iron
- Guideway hardened by ultrasonic frequency and precise ground, good precision keeping
- Aging treatment,has good vibration absorption and rigidity
- Guideway stick PTFE,remove creeping,obviously increase precision, wearability and anti-impact force
- Spindle use high precision bearing
- Adopt 3 class gear box,suitable for heavy turning.
Item Specification Unit BL-CBK50 BL-CBK63
Capacity Bed slant angle ° 45° 45°
Max. swing dia. over bed mm Φ500 Φ630
Max. swing dia. over saddle mm Φ350 Φ445
Max. turning dia. mm Φ420 Φ500(Vertical 4T tool turret);
Φ400(Horizontal 8T tool turret)
Max. turning length mm 1050(Vertical 4T tool turret);
980(Horizontal 6,8T tool turret)		 1000/2000/3000(Vertical 4T tool turret);
800/1800/2800(Horizontal 8T tool turret)
Max. workpiece weight kg 700(10'' manual chuck) 1200(12'' manual chuck)
Spindle Spindle bore mm Φ82 Φ84
Spindle type / A2-8 A1-11(manual chuck);A2-8(hydraulic chuck)
Spindle speed rpm H:162~1620 M:66~660 L:21~210
Manual 3 class gears, stepless in every class 		L:20~210 M:50~525 H:155~1600
Manual 3 class gears, stepless in every class
Spindle motor power kw 7.5 11
Chuck size / 10'' 12''
X/Z axes X axes travel
 mm 255 350(Vertical 4T tool turret);
270(Horizontal 8T tool turret)
Z axes travel mm 1000 1000/2000/3000(Vertical 4T tool turret);
800/1800/2800(Horizontal 8T tool turret)
X axes ball screw O.D. mm Φ32 Φ32
Z axes ball screw O.D. mm Φ40 Φ50(1000mm)/50(2000mm)/63(3000mm)
X axes ball screw pitch mm 5 5
Z axes ball screw pitch mm 6 6(1000mm)/6(2000mm)/8(3000mm)
X/Z axes rapid moving speed m/min 6/8 8/8
Tool turret Tool turret type / Vertical 4T/Horizontal 6,8T(opt.) Vertical 4T/Horizontal 8T(opt.)
Toolshank size mm 25×25 32×32
Tailstock Tailstock quill taper / MT5# MT5#
Tailstock quill dia./travel mm Φ90/100 Φ100/150
Others X/Z axes positioning accuracy mm 0.026/0.036 X axes≤0.026
Z axes≤0.036(1000mm);0.040(2000mm);
0.048(3000mm)
X/Z axes repeated positioning accuracy mm 0.01/0.013 X axes≤0.007mm
Z axes≤0.009(1000mm);0.014(2000mm);
0.020(3000mm)
Turning workpiece roundness mm 0.004 0.004
Overall size mm 3120×1900×1910 2720/3980/5050×1800×1890
N.W. kg 3800 5000/5500/7500

Main parts list:
Item Brand
Spindle bearing CHINA top-CSC/ZWZ
Ball screw bearing CHINA top-CSC
Ball screw CHINA top
Lubrication pump JAPAN-LUBE

Standard configuration: - FANUC 0i TF CNC Controller
- Manual chuck
- 4 station tool post
- Manual tailstock

Optional configuration: - SIEMENS 808D/GSK980TDi
- Hydraulic chuck
- 6/8 station tool turret
- Hydraulic tailstock
- Hydraulic steady rest
