All Kinds of Centrifugal Water Pump with T Self-Priming Clean Water/Trash/Sewage/Submersible Pump

Product Description

All Kinds of Centrifugal Water pump with T Self-Priming Clean Water/Trash/Sewage Pump

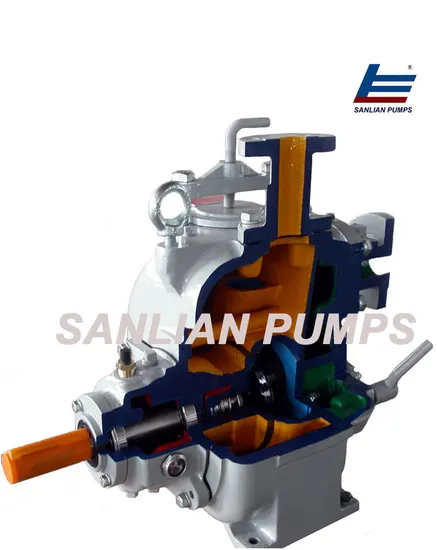

T series self-priming pumps are designed for economical & trouble-free operation in handling solids-laden liquids and slurries.
T Series pumps are designed for economical & trouble-free operation in handling solids-laden liquids and slurries. Pumps feature a large volute design which allows them to re-prime automatically in a completely open system without the need of suction or discharge check valves. And this is workable with the pump only partially filled with liquid and completely dry suction line.
Pumps will be able to handle up to 75mm spherical solids, depending on pump models. In case that pump shaft or bearings need service or repair, the entire rotating assembly can be removed without disturbing pump casing or pipelines.
Rotating assembly is sealed with an O-Ring, allowing for external adjustments of clearance.
Material: Cast Iron, ADI, CD4MCU, 316 SS, Alloy 20, C276.
Data Sheet:
Type: T-2
Inlet, outlet: 2"
Max. Throught solids: 44.45mm
Head: 5m ~ 36m
Flow: 10m³ /h ~40m³ /h
Speed: 1150rpm ~2900rpm
Repriming lifts: 7.3m ~7.6m
Type: T-3
Inlet, outlet: 3"
Max. Throught solids: 63.5mm
Head: 4m ~ 35m
Flow: 10m³ /h ~100m³ /h
Speed: 650rpm~ 2150rpm
Repriming lifts: 1.5m~ 7.6m
Type: T-4
Inlet, outlet: 4"
Max. Throught solids: 76.2mm
Head: 4m ~ 35m
Flow: 20m³ /h ~150m³ /h
Speed: 650rpm~ 1950rpm
Repriming lifts: 1.5m~ 7.6m
Type: T-6
Inlet, outlet: 6"
Max. Throught solids: 76.2mm
Head: 4m ~ 30m
Flow: 20m³ /h ~300m³ /h
Speed: 650rpm~ 1550rpm
Repriming lifts: 2.4m~ 7.6m
Type: T-8
Inlet, outlet: 8"
Max. Throught solids: 76.2mm
Head: 5m ~ 30m
Flow: 50m³ /h ~550m³ /h
Speed: 650rpm~ 1350rpm
Repriming lifts: 2.7m~ 7.0m
Type: T-10
Inlet, outlet: 10"
Max. Throught solids: 76.2mm
Head: 5m ~ 35m
Flow: 100m³ /h~ 700m³ /h
Speed: 650rpm ~1450rpm
Repriming lifts: 2.1m~ 6.7m
Type: T-12
Inlet, outlet: 12"
Max. Throught solids: 76.2mm
Head: 5m ~ 40m
Flow: 150m³ /h ~1100m³ /h
Speed: 650rpm ~1250rpm
Repriming lifts: 1.6m~ 4.9m
Main Products
End-suction pump
Close coupled end-suction pump
Split case pump
Mutistage pump
Self-priming pump
Submersible axial pump
Submersible sewage pump
Sewage pump
Dredge and slurry pump
Chemical pump
Vacuum pump
Fire fighting pump set
About Us

We manufacture and market a broad range of OEM and brand labeled pumps for diverse markets such as Oil & Gas, Mining, Chemical, Power, Hydrocarbon and Water resources; in addition to providing manufacturing services ---to a broad range of international OEM customers. We have developed a wide range of manufacturing capabilities, including in-house, in-line cast iron and cast steel foundry production lines, a well developed modern machine shop with the latest CNC equipment, and an engineering department with 124 engineers utilizing the latest 3D CAD and simulation software. Manufacturing has a comprehensive set of modern inspection and diagnostic equipment; our quality standards conform to ISO 9001. Established in 1965, our history is deeply rooted in technology. We have made continuous improvements in capital equipment and company wide process control. To meet the needs of the Global markets we have made significant investments in high volume manufacturing and modern computer based engineering and inspection equipment.

Quality Assurance Our R&D, manufacturing, production and testing facilities are all centrally housed and constantly improved as the most modern and efficient facilities in China. Supplying quality pumps has been the common commitment for all Sanlian people.
Sanlian Pumps represent a fusion of computer-aided design and manufacturing echniques, guaranteeing you the best performance. To maintain the high standard quality set by Sanlian, all pumps are subjected to stringent inspection at all stage of production. They also comply with the appropriate international quality assurance and inspection standards. As a symbol of this reliability, Sanlian has been accredited with ISO 9001 certification.
Sanlian Pumps has built up solid reputation by providing performance and quality products to all applications for decades of years, our active involvement in supplying custom engineered pumps have also been proven as an accredited source by our OEM partners.
We continue to take pride of servicing all our customers from different applications with the highest standards products.

---
