Dry Trommel for PET Bottle Recycling System

Product Description

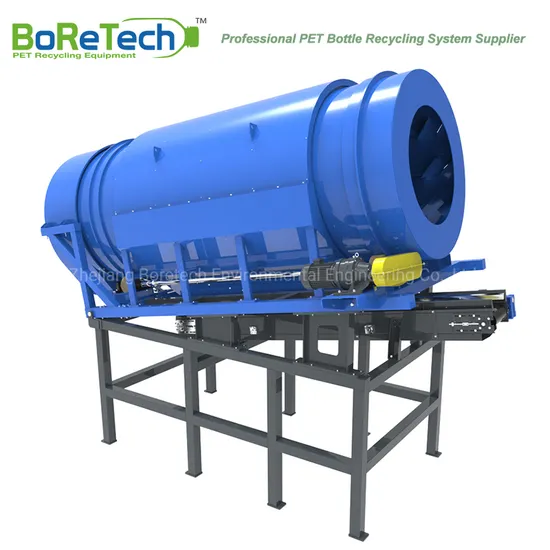

Dry Trommel for PET Bottle Recycling System
Sieving machine is used to separete solid waste such as sand, metal, small stone, labels in PET bottle recycling process. It helps the PET bottle washing by reducing equipment abrasion, material loss to enhance productivity. Flakes sieving improve the quality of final PET flakes.
BoReTech supplys two types of sieving machines, dry trommel and disk screener. Disk screener is more compact than the dry trommel, it can be placed after de-baling and pre-washing then remove sand, labels and so on. It can evenly disperse the bottles onto the next process and remove remained water. Dry trommel can remove caps and sands separately by multiple mesh sizes.

Model	Capacity(kg/h)	Power(kW)	Drum Diameter (mm)	Mesh Size (mm)	Dimensions (mm)
GTS1600	3000	5.5	Ø1600	Ø30*50	5230*3490*2315
GTS1900	4500	7.5+1	Ø1900	Ø30*50	6070*2660*4675

Standard Process Flowchart for Your Reference
(Process as per layout based on customer's factory and rPET flakes applications demand)
De-baling------Metal Separation------ Label Scrapping------- Label Separation-------- Presorting------Bottle Pre-washing ------Automatic Sorting/Manual Sorting -----Wet Grinding-------Drying-------Hot Flotation-------Friction-------Continuous Rinsing-----Drying--------Dust Removal------Packing
Sieving Section
Sieving unit including dry trommel, disk screener and metal removal device to separate some big impurities such as mud, sands and metals from PET bottles and flakes. Meanwhile, through digital technology likes metal detector, pipe-type metal separator, metals can be separated automatically by flapping device to reduce inline manpower. Besides, belt-type metal separator can reach the same function.
1,pre-sale support:
Normally we suggest you paint our standard color , but we can supply customization paint service by paid.
2,after-sale service:
Warranty:1 year for machinery,6 months for electrical.
For mechanical parts, our guarantee duration is 12 months. If the part is broken within this period, we will send the spare parts immediately to the client for repairing.
3,technical support:
Normally, we send our engineer(s) to supervise the installation and commissioning. The buyer need to prepare the operation staff to implement it. BORETECH is able to send mechanical engineer, electrical engineer and operation engineer. The operation engineer is to help the buyer's labors to know how to operate the washing line and get the best efficiency.
Boretech is one of the major supplier of PET bottle recycling system in Asia . We uses the around 30 years of fiber making and bottle recycling experiences to manufacture PET Bottle recycling machine and configure Pelletizing line, Polyester Staple Fiber line, POY line and Bottle to Bottle Line. At present, we have supplied about 170 sets plant for more than 30 countries.Our customers in the US, Japan, EU manufacture food grade rPET resin for such well-known brand owner's such as Coca Cola, Niagara Bottling, Nestle, etc.
Boretech can help our customers to make right configuration of the machinery, and find the right position in the industries. The most important value is that we can help our customers to minimize the learning cost and to avoid making any mistake during investment.
FAQ
Q:How do you assistant to install the machine on worksite?
A: Normally, we send our engineer(s) to supervise the installation and commissioning. The buyer need to prepare the operation staff to implement it. BORETECH is able to send mechanical engineer, electrical engineer and operation engineer. The operation engineer is to help the buyer's labors to know how to operate the washing line and get the best efficiency.
Q:What do you guarantee on China local brand for bearing and gearbox?
A:For mechanical parts, our guarantee duration is 12 months. If the part is broken within this period, we will send the spare parts immediately to the client for repairing.
Q:Can I use machine with different color?
A: Normally we suggest you paint our standard color , but we can supply customization paint service by paid.
Q:What about packaging and transshipment?
A: It depends on capacity and equipment selection. For example, the line with 3 ton/h input capacity, there will be 15x40'HQ containers from China, and 1x40'HQ container from Taiwan. The crusher and crusher blade are made in Taiwan with excellent quality. For some special case, if the client requests the batch type bottle prewashing machine, we will need one flat rack for loading that.
Q:What is the delivery of the line?
A: 3~4 months after receipt of the down payment and L/C.
Q: How far is your factory from Shanghai?
A: It takes 1~1.5 hours from Shanghai airport to Boretech according to traffic situation.

---
