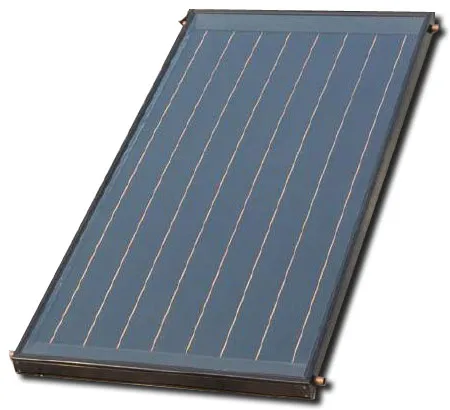

Flat Plate Solar Collector 2.5sqm

US$120.00
5-19 Pieces
US$100.00
20-99 Pieces
US$95.00
100+ Pieces

Basic Info.

Model NO.
RNE-80D
Certification
ISO, CE
Concentrating
Yes
Working Temperature Range
Medium Temperature
Type
Flat Panel
Application
Water Heater, Solar Thermal, Air Conditioning System
Pipe Material
Copper
Collector Type
Flat Plate Solar Collector
Panel Size
2000X1000X80mm
Gross Area
3.0 Sqm
Absorber Area
2.85sqm
Absorption Rate
95%
Emission Rate
6%
Welding
Laser Welding
Absorber Coating
High Selective Bluetec Titanium Coating
Head Pipe
Red Copper Tube, 22mm Diameter, 0.8mm Thickness
Riser Pipe
Red Copper Tube, 10mm Diameter, 0.6mm Thickness
Insulation
Glass Wool 40mm
Glass Cover
Low Iron Tempered Glass 3.2mm
Back Sheet
Galvanzied Steel 0.41mm
Transport Package
Carton
Specification
2000x1000x80mm
Trademark
RAVEN NEW ENERGY
Origin
China
HS Code
84199010
Production Capacity
3000PCS / Month

Product Description


The flat plate solar collector is a type of solar thermal panel whose objective is to transform solar radiation into thermal energy. This type of solar collector has a good cost / effectiveness ratio in moderate climates and adapts correctly to a large number of applications of solar thermal energy (heating of sanitary water, heating of swimming pools, support for heating, preheating industrial fluids , etc.).
The flat glazed solar collector is generally used in domestic water heating systems or in installations. The operating temperature is generally between 30 ° C and 60 ° C. It consists of an insulated box covered by glazing. Inside, there is an absorbent in which the heat transfer fluid circulates. The glazing blocks the infrared radiation and isolates the air space above the absorber to maintain heat.
Strcuture
Specification
Absorber Plate Advantages
Production
Application
