Ksm1100 Cylinder Head and Block Resurfacing Machine

Product Description

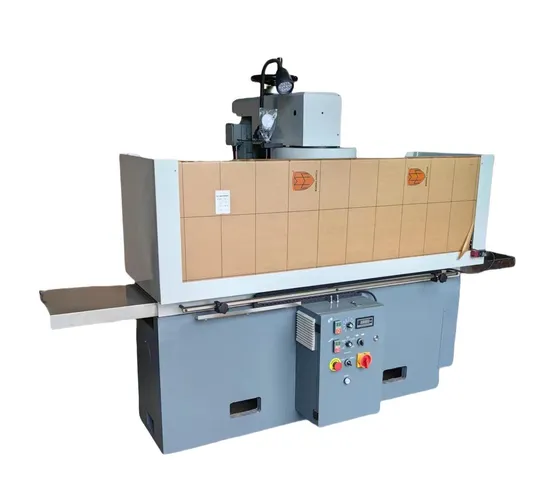

Cylinder Head and Block Resurfacing Machine KSM1100
This manual is supplied with the machine and should be kept in a safe place for future reference.
It has been written for the operator who must read and fully understand its contents before operating the machine.
Carefully read the warnings and the instructions contained in the manual. They contain important
information regarding emergency situations and also for the maintenance of the machine.
The manufacturer declines any responsibility for breakdowns, damage or injury caused by non-
observance of the instructions contained within this manual.
1. Ideal resurfacing machine for cylinder head and block of car and truck.
2. High quality cast iron frame offers high rigidity and sturdiness features. 3. Variable table travel feed / head rotate speed.
4. Table feed operated by ball screw drive extremely precise.
5. Taiwan brand inverters control table travel and head rotate.
6. Manual / continuous working cycle programs.
7. CE standard control panel.
8. Safety guard with policarbonate shield.
9. Pair of parallel supports with 6 clamps.
10. 1/2" CBN /PCD insert and tool holder as standard accessories.

Model	KSM 1100
Table travel	1365 mm
Max. Workpiece length	1100 mm
Max. Workpiece width	445 mm
Min - Max. Workpiece height	260 - 520 mm
Milling wheel diameter	400 mm
Variable head rotate speed	300 - 1200 rpm
Variable Table travel speed	0 - 600 mm/min
Head motor	2.2 kw
Table motor	1.5 kw
Dimension	190 x 125 x 168 cm
N.W / G.W	1500 / 1760 kg

---
