Special Price for Aluminum Spacer Bending Machine of Ig Machine Line

Product Description

Product Description

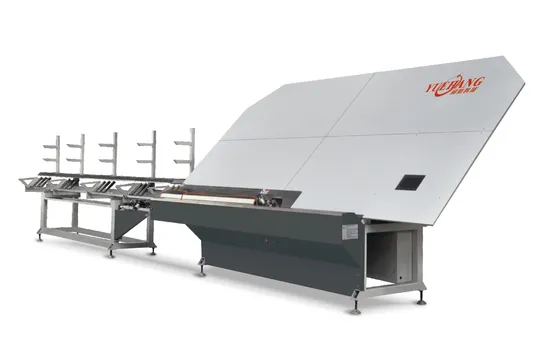

Special Price for Aluminum Spacer Bending Machine of IG Machine Line
1.Apply CNC control system with touch screen interface (Both Chinese and English language) .Parameter setting and transfer are very convenient .
2.Adopt two axis servo motor accompanied with encoder for profile supply and bending control. Size error within ±0.3mm/m, angle error within ±0.3°.
3.Be able to imitate finished frame shape. The image is symbolic and lively .
4.Four profile magazines for different specifications of spacers .
5.All activities can be controlled manually for the convenience of test and overhaul.
6.Intelligently avoid spacer connection part. Automatic cutting after bending. Shape shift among line,angle and arc are flexible.
Product Parameters
Parameter of Special Price for Aluminum Spacer Bending Machine of IG Machine Line

Spacer Width	6mm-20mm
Frame size	Max:2000mm×2000mm Min:350mm×350mm
Conveying speed	at 0-90m/min(adjustable)
Air pressure	0.7MPa
Power	3P 415V/1P+N 240V, 50Hz 5kW
Machine Size	10000mm(L)×2200mm(W)×2600mm(H)
