High Reflectivity Solar Mirror 3.2 mm and 4 mm

Product Description

High reflectivity solar mirror 3.2 mm and 4 mm
Solar mirrors are the basic part of CSP power plant, then high reflectivity and long durability are paramount.We SINOY MIRROR INC select the best performance low iron extra clear glass or ultra thin float glass to ensure our solar mirrors to have the best performance in light reflectivity.
SINOY MIRROR INC Solar mirror is a reflective surface used for gathering an reflecting solar energy in a system, being powered by solar energy it comprices a glass substrate,a reflective layer for reflecting the solar energy and an interference layer.
The purprose of the solar mirror is to achieve a substantially concentrated reflection factor forsolar energy systems.
Features:
1)made of quality low iron float glass
2)thickness: 3.2mm
3)silver coated, copper free, lead free
4)water-resistance
5)scratch-resistance
6)can be used in high temperature surroundings.
7)can be used up to 25 years
Applications:

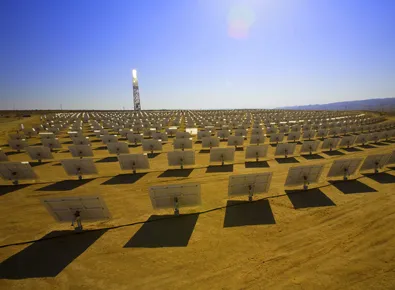

1) Tower CSP
2) Stirling CSP
3) Other Solar Applications

Specifications:

i) Thickness	3.0mm (+/- 0.1mm )
ii) Standard Size	2134 x 3300mm (+/- 0.5mm)
iii) Materila	Low iron ultra clear glass
iv) Coating	SILVER + COPPER + PROTECTIVE PAINTS (3 layers)
a) thickness of silver	≥ 1200 mg/m2
b) thickness of copper	≥ 300 mg/m2
c) thickness of protective paint	≥ (30 um + 30um + 30um)
v) Surface paint color	WHITE
vi) UV-resistant	YES
vii) Light reflectivity	> 93.0%

---
