Load 1.5t Height 12m Workshop Used Fixed Hydraulic Scissor Lift Table

Product Description

Hydraulic Stationary Scissor Lift Platform

Product Description
Stationary scissor lift platforms are widely used machines for many fields, the most popular using are in warehouse,basement,first floor,etc, which for carrying the cargos,cars and so on, to the high floors.
It is design and produce as clients' requirements, as long as telling us the requirements of capacity, platform size, lifting height, we can design, supply drawing and give offer.

Product Parameters
The specifications of the SJG1.5-12:

Capacity:	1500kg
Platform size:	3300*2000mm
Lifting height:	12meters
Closed height:	1550mm
Power:	380V/5.5KW/50HZ
Working pressure:	15MPa
Lifiting speed	4-6m/min, speed adjustable.
Platform material:	12#C steel with 4mm thick anti-skid plate.
Scissor structure:	High pressure rectangular tube, size:120*60*6mm.
Bottom frame material:	12#C steel with 60*4mm Rectangular tube beam.
Cylinder:	Dia. 100, 4pcs
Hydraulic pipes:	2-10-43MPa,Double steel net high-pressure tube. Inside explosion-proof valve.
Pump station:	With emergency oil returning valve, can operate the platform lift down in case the power off when work; Inside has overflow valve, overload protection.
Controller:	Delixi brand, contactor list links, equipped with thermal overload protection, phase losing protection.
Control method:	Bottom and upper controls,Up.,down, stop and quicken button.
Seal ring:	German series type
Bearing:	SF-1 oil-free self-lubricating bearing
Shaft pin	45# round steel made, thermal refining.
Hydraulic oil:	32# Great wall brand.
Derusting & paint	Using electrostatic powder coating,shot and blasting derusting treatment,make the surface clean and effect of uneven, increase the adhesion of powder when paint.

----------------
These are othe models which we supplied to the customers:

Model	Capacity(kg)	Table size(m)	Lifting height (m)	Closed height(m)	Power
SJG3-4.5	3000	5.7*2.0	4.5	0.85	4KW/380V
SJG0.5-2.7	500	1.5*1.0	2.7	0.5	1.5KW/380V
SJG2-5	2000	1.75*1.2	5	1.03	3KW/380V
SJG1.5-2.4	1500	2.2*1.5	2.4	0.45	3KW/380V
SJG5-3	5000	3 * 2	3	0.8	4KW/380V
SJG1.5-4	1500	2.5*1.5	4	1.0	3KW/380V
SJG4-4.4	4000	2 * 1	4.4	1.1	4KW/380V
SJG2-11	2000	5.5 * 2.2	11	1.2	5.5KW/380V
SJG1.5-4	1500	1.8 * 2	4	0.86	4KW/380V
SJG0.7-0.95	700	0.95*0.8	0.95	0.4	2.2KW/380V
SJG0.2-2.3	200	1.3*1.0	2.3	0.48	2.2KW/380V
SJG3-2.3	3000	1.6*1.4	2.3	0.66	2.2KW/380V
SJG1-5	1000	1.6*1.5	5	0.92	2.2KW/380V
SJG2-6	2000	2.0*2.0	6	1.03	4KW/380V
SJG2-5	2000	2.1*1.2	5	0.87	4KW/380V
SJG3-6.5	3000	2.2*1.9	6.5	1.52	5.5KW/380V
SJG2-5	2000	2.3*1.4	5	0.87	4KW/380V
SJG2-5.15	2000	2.3*1.44	5.15	0.87	4KW/380V
SJG2-4	2000	2.5*1.5	4	0.86	4KW/380V
SJG2-9	2000	2.5*2.0	7.5	1.43	4KW/380V
SJG1.5-7.9	1500	2.6*2.0	7.9	1.2	4KW/380V
SJG2-5.4	2000	2.9*2.0	5.4	0.82	4KW/380V
SJG2-4	2000	3.0*1.6	4	0.83	4KW/380V
SJG2-4.5	2000	3.0*2.5	4.5	0.82	3KW/380V
SJG3-4.5	3000	4.3*2.8	3	1.03	5.5KW/380V
SJG1.5-8.5	1500	2.25 *1.6	8.5	1.2	4KW/380V

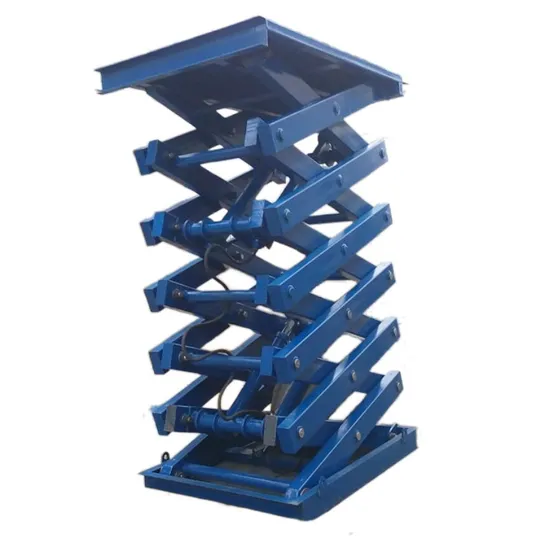

Detailed Photos
Main Features
★ Design according to clients' requirements, the max load capacity can be 30 tons.
★ Emergency and overload protection devices.
★ Anti-slip checkered steel plate of the paltform surface.
★ Imported or domestic joint venture hydraulic pump, cylinder and seal ring, and other spare parts are available.
★ Controls on the different floors or levels for customers if they need.
★Supply for detailed installation drawings, operation and maintainance manual, hydraulic diagram, electric diagram. Good warranty and service.

Workshop Show
Packaging & Shipping

---
