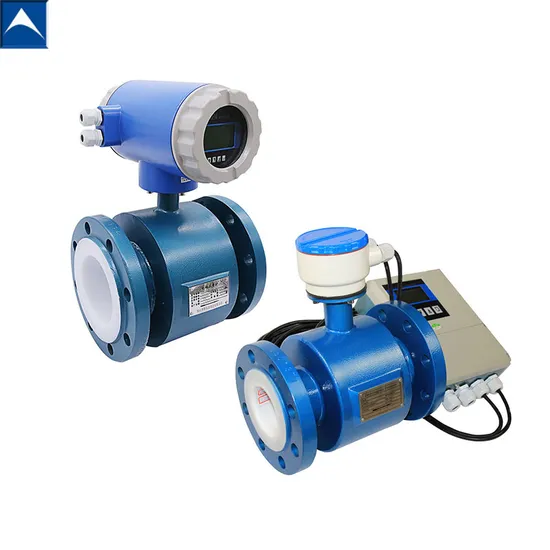

Low Cost Emf Liquid Slurry Electromagnetic Flow Meter/Magnetic Flowmeter

Product Description

Low cost EMF liquid slurry electromagnetic flow metermagnetic flowmeter Product Description
Electromagnetic flow meter adopts Chinese and English display smart converter with 16-bit embedded microprocessor.
All digital processing, with two-way flow measurement function, instantaneous flow and positive and negative direction of the cumulative amount and the cumulative amount. Used to measure the volume flow of conductive media such as clear water, sewage, acid, alkali, slurry, food grade liquid, salt solution liquid.
Product advantages 1. Measuring accuracy will not be influenced by medium temperature, press, viscosity, density and the conductivity of measured medium. Measuring tube unimpeded parts, no pressure loss, straight pipe less demanding
2. Low requirement to upstream and downstream straight pipe and easier to install
3. Converter uses big screen back light LCD display, you could read the data clearly in the sun, hard light or night
4. Touching infrared ray button to set the parameters, without opening the converter can be set in harsh environiments
5. Display bidirectional traffic automatic measurement, forward / reverse total flow, have several kinds ways of output function: 4-20mA, pulse output, RS4856. Inverter fault self-diagnosis and automatic alarm function: empty pipe detection alarm,upper and lower limit flow detectionalarm, excitation fault alarm and system fault alarm;
7. Not only used for the general process of testing, but also for the pulp, pulp and paste fluid measurement
8. High-pressure electromagnetic flow meter using PFA screening liner technology with high pressure, anti-negative pressure, specifically for petrochemical, mineral and other
9. Explosion-proof instruments can be used for the corresponding explosion-proof place.
Parameters
Dimensions
Order sheet

Name	Specification code	Explanation
Instrument type		Low cost EMF liquid slurry electromagnetic flow metermagnetic flowmeter
Diameter code	AT-xxx	For example:100 represents DN100
Electrode form	1	Standard stationary type
Electrode material	0	Stainless steel(316L)
	1	Platinum Pt
	2	Hastelloy B(HB)
	3	Tantalum Ta
	4	Titanium Ti
	5	Hastelloy C(HC)
Lining material	3	Chloroprene rubber
	4	Polyurethane rubber
	5	F4(PTFE) polytetrafluoroethylene
	6	F46(FEP)polyperfluoroethylene-propylene
Rated pressure(MPa)	1.6	DN10-80
	1.6	DN100-150
	1.0	DN200-1000
	0.6	DN1100-2000
	0.25	DN2200
Operating temperature	E	<80ºC
	H	<120ºC
Grounding		Built-in grounding electrode
Grade of protection	0	IP65
	1	IP68
Converter type	0	Integral type
	1	Split type
Case material	0	Carbon steel
	1	Stainless steel
Instrument flange	0	Carbon steel
	1	Stainless steel
Installing timing flange	0	Without
	1	With
Power supply source	0	220VAC
	1	24VDC

Company Profile
Auto Instrument Making Co., Ltd has been committed to crafting high-end equipment since 1994. Specifically, we focus on manufacturing
measures and process control instruments in the industrial pressure measurement, which pursues to be the cherry on top by adhering
to the accumulated craftsmanship. Our main products include differential pressure transmitters, pressure transmitters, capacitive pressure sensors, electromagnetic flow meters, vortex flow meters, and radar level which are widely used in the industries of electrical power, petroleum, metallurgy, medicine, food, brewing, textile, building material, etc..
As a source manufacturer, we are capable of modifying or remolding the core production equipment to satisfy the specified product features.
The concepts of modification works apply to several annual rings, including welding systems, pressure calibration systems, diaphragm coating systems, and so on.
FAQ
1. Q: Are you a manufacturer or trading company?
A: We are the manufacturer for pressure, flow and level transmitters since 1994.
2. Q: What's your quality control system?
A: As an ISO9001:2008 certificated manufacturer, we have a strict quality control system, and each product is done with fatigue testing, calibration, temperature compensation before shipment. High quality is guaranteed.
3. Q: Is there MOQ with your product?
A: We have no MOQ limits, 1pc for testing is acceptable.
4. Q: Do you provide customized products?
A: Yes, we can print your logo on our products; OEM, ODM & customization are welcome.
5. Q: What is the warranty of your products? And after-sales service?
A: Our warranty time is 12 months after shipment, and our after-sales will respond with your questions in 24hrs, remote instruction by PC network is always available.
6. Q: What is the lead time of your product?
A: We are a factory, our lead time is always within 10~15 working days for products without customization, but lead-time will vary based on different products. You can check detailed lead-time with our sales.
7. Q: What international certificates do you have for your products?
A: We have CE, RoHS, SIL,IOS, ATEX.

---
