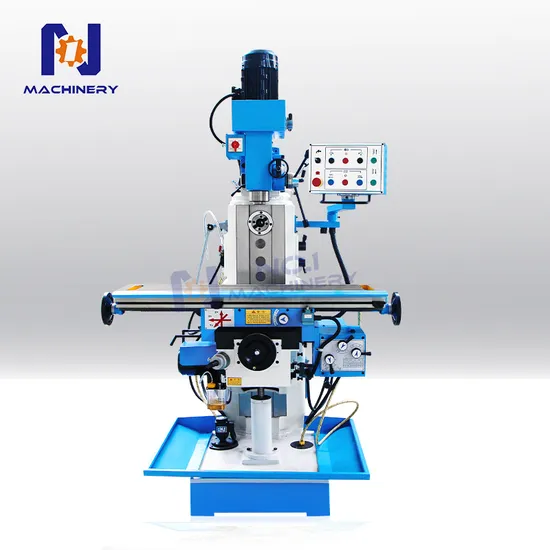

Customized Zx6350 Vertical and Horizontal Milling Machine Tool Turrent Drilling and Milling Machine

Product Description

Product Description
The main performance characteristics:1.M Hanna high strength cast iron, internal honeycomb rib structure, high rigidity, long service life.
2.Spindle adopts imported from Japan King combination diamond. After the quenching and tempering and frequency processing, after fine grinding with 4 imported bearings (other manufacturers spindle 3 bearing), ensure high quality and high precision.
3.Three shaft screw fine grinding with advanced phosphor bronze nut, durable.
4.Horizontal milling with 4 gear shaft speed (other manufacturers for the 2 gear shaft), a wide range of variable speed, torque.
5.Many parts of the machine tools have been applied for patent

Product Parameters

PARAMETER ITEM	UNIT	ZX6350	ZX6332A	ZX6336A
Drilling diameter	mm	50	50	50
End milling maximum width	mm	100	100	100
Vertical milling maximum diameter	mm	25	25	25
Maximum diameter of the pupil	mm	120	120	120
Maximum tapping diameter	mm	M16	M16	M16
Spindle taper		MT4	MT4/7:24:40	MT4/7:24:40
Spindle end to table distance	mm	90-450	80-480	80-550
Spindle speed range	rpm	(V)115-1750 (H)40-150	(V)115-1750(H)40-1300	(V)115-1750(H)40-1300
Spindle travel(Z)	mm	120(V)	120(V)	120(V)
Working desk size	mm	1200/1500x280x400	1500x320x400	1500x360
Workbench trip (X/Y)	mm	650/900x280x350	1000/320/400	1000x360x450
Dimensions	mm	1680x1480x2250	1720x1520x2225	1600x1700x2200
Motor Power	kw	1.5 /2.2(V) 2.2(H)	1.5 /2.2(V)2.2(H)	(V)1.5/2.2 (H)4.0
Weht	kg	1450/1560	1770/1900	2200/2350

Detailed Photos
Packaging & Shipping
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
Zaozhuang NO.1 CNC Machine Tool Co.,LTD is located in the beautiful city, Tengzhou,Shandong Province,China.We specialized in manufacturing & exporting machine tools to the world for more than 30 years. Our factory has More than 30,000m² of the factory with more than 200 workers.We have got many international certifications such as lSO, WIPO, CE, EAC,BV, TUV, SGS, and patents, Our machines have been exported to more than 100 countries and regions, and provide long-term overseas technical guidance and after-sales service for these countries .We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management. Strictly QC control with more than 24 steps testing processes.We wish to cooperate sincerely with friends all over the world to realize mutual development.

FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,I can choose the best model for you , or you can choose the exact model . You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as lathe machine ,cnc lathe machine ,milling machine ,cnc milling machine ,vertical machining center ,drilling machine ,radial drilling machine ,sawing machine ,shaper machine and so on .
3: Where is our factory located? How can I visit there?
A: Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A: FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A: T/T ,30% initial payment when order ,70% balance payment before shipment ; Irrevocable LC .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )

---
