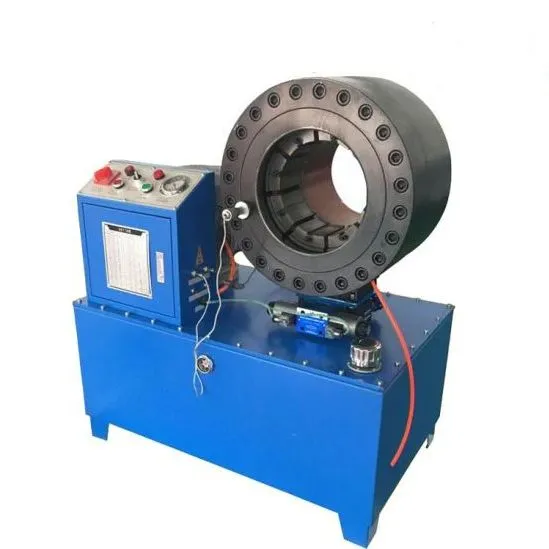

Compact Hose Crimping Machine Hydraulic Coupling Machine

Product Description

Model DX68 hose crimping machine is mainly used for crimping processing for high pressure rubber pipe assembly in the mechanical engineering. It can also be used for buckling the two-way bends, especially large bends and irregular shape bends. Product Description

Model number	DX68
Crimping	1/4''~2''
Max crimping force	500T/5000KN
Crimping efficiency	200 pcs/H
Max opening	114 mm
Opening	±30mm
Rated pressure	31.5 MPa
Motor power / voltage	380V/3KW or 220V/2.2KW
Crimping period	12s (380V) or 15s (220V)
Motor Flow	2.5L
Crimping percision	0.01 mm
Die quantity	10 sets
Die number	15.19.23.26: length-60 mm 31.3641: length-70 mm 4755.60: length-80 mm
Gross Weight	260KG
Machine Size	730*480*740mm
Packing Size	800*530*870mm

Certifications

Packaging & Shipping
Packing: Wooden pallets
Feedback
Company Profile
FAQ
1. Q: What is your terms of packing? A: Standard plastic/woven belt wrap or wrapped according to the customer's requirement2. Q: Can you produce according to the sample? A: Yes, OEM service available. We can produce by your samples or technical drawings.3. Q: What is your sample policy? A: Samples available if we have ready part in stock, shipping cost is on buyer's side.4. Q: How do you guarantee your quality and what after-sale service do you have? A: Our factory follow the quality standard in every producing process. Any quality problem within 3 months after purchase, we are responsible for it.5. Q: How long does my order take to be delivered? A: It generally takes 5-30days, depends on the order.

---
