Scope Digital Tester Multimeter Digital Low-Resistance Ohmmeter

Product Description

Overview
Quick Details
Place of Origin:
Hebei, China
Brand Name:
Huazheng
Model Number:
Uni-t Ut181A
Measuring Current Range:
600μA/6000μA/60mA/600mA
Measuring Voltage Range:
60mV/600mV/6V/60V/600V
Measuring Resistance Range:
600Ω/6kΩ/60kΩ/600kΩ/6MΩ
Measuring Capacitance Range:
6nF/60nF/600nF/6μF/60μF
Measuring Inductance Range:
\
Operating Temperature:
0-40
Dimensions:
103x225x59
Product Name:
Uni-t Ut181A
Packaging & Delivery
Selling Units:
Single item
Single package size:
11X23X6 cm
Single gross weight:
1.000 kg
Package Type:
box
Lead Time:

Quantity(Units)	1 - 1	>1
Est. Time(days)	15	To be negotiated

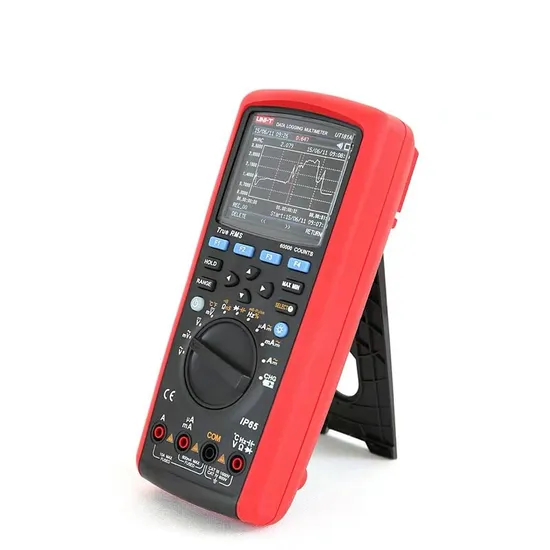

Uni-T Ut181A True RMS Datalogging Digital Multimeters Dmm Capacitance Temperature Meter
Product Description
Product Description of Ut181 AC DC Voltmeter Avometer Capacitance Resistance Digital Multimeter
1. Portable, compact and lightweight.
2. 3 3/4 digit digital multimeter auto ranging pocket.
3. Functional and stable performance.
4. High precision, low power consumption.
5. The new structure, safe and reliable.
6. Simple, easy to use, rugged and durable.
Parameter of Ut181 AC DC Voltmeter Avometer Capacitance Resistance Digital Multimeter

Specifications	Range	Best Accuracy
Model	UT181	UT181A
DC Voltage (V)	60mV/600mV/6V/60V/600V/1000V	±(0.025%+5)
AC Voltage (V)	60mV/600mV/6V/60V/600V/1000V	±(0.3%+30)
DC Current (A)	600μA/6000μA/60mA/600mA/10A	±(0.08%+10)
AC Current (A)	600μA/6000μA/60mA/600mA/10A	±(0.6%+20)
Resistance (Ω)	600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ	±(0.05%+2)
Admittance(nS)	60nS	±(2%+10)
Capacitance (F)	6nF/60nF/600nF/6μF/60μF/600μF/6mF/60mF	±(2%+5)
Frequency (Hz)	10Hz-60MHz	±(0.01%+5)
Temperature (°C)	-40 °C~1000°C	±(1%+30)
Temperature (°F)	-40°F~1832°F	±(1.5%+50)
Features
Display Count		60000
Auto Range		√
Manual Range		√
True RMS		√
Bandwidth (Hz)	100kHz	√
AC + DC		√
Low Pass Filter	1KHz(-3db)	√
dBV/dBm		√
Continuity Buzzer		√
Diode	Around 3V	√
Duty Cycle	10% ~ 90%	√
Dual Temperature Measurement	T1,T2, T1-T2,T2-T1	√
Data Hold		√
Peak Hold		√
Relative Mode		√
Data Logging	20000	√
Trend Capture		√
MAX/MIN/AVG		√
Date Time Display		√
Data Comparsion		√
Display Type	3.5 Inches 64k Color TFT LCD (320 * 240)	√
Backlight Adjustment		√
Analogue Bar Graph	61	√
USB Interface		√
Mis-Plug Alarm		√
Low Battery Indication		√
Auto Power Off		√
Re-Chargeable Battery		√
Input Protection		√
Input Impedance for DCV	Around 10MΩ	√
General Characteristic
Power	7.4V 2200mAh Li-Battery
LCD Size	70mm × 52mm
Product Color	Red and Grey
Product Net Weight	638.6 g
Product Size	103mm × 225mm × 59mm
Standard Accessories	Batteries, Test Lead, Temperature Adaptor, Point Contact Temperature Probe × 2, Power Adaptor, PC Software CD, USB Interface Cable
Standard Individual Packing	Gift Box, Carrying Bag, English Manual
Standard Quantity Per Carton	20PCs
Standard Carton Measurement	480mm×385mm×505mm (0.085 CBM Per Standard Carton)
Standard Carton Gross Weight	26.5 Kg
Optional Accessories*	wireless transmission Adaptor (UT-D07)

---
