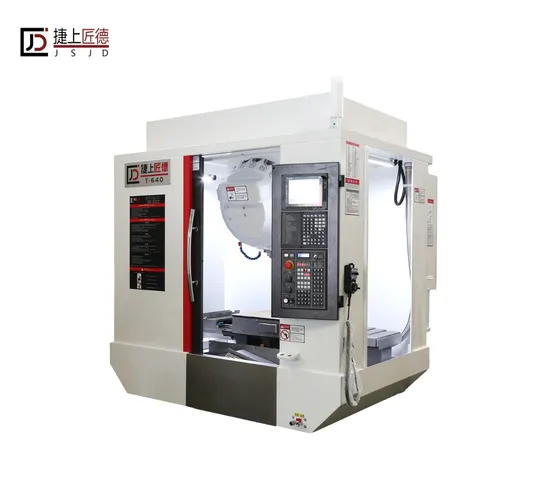

High Speed 20000rpm T-640 CNC Machine Tool China 3 Axis Vertical Tapping Drilling Machine

Product Description

Product Description
Product Parameters

Specification		Unit	T-640
Travel	X axis	mm	600
	Y axis	mm	400
	Z axis	mm	300
Controller	System		Fanuc:Oi-MF/Siemens/Syntec:22MA/Mitsubishi:M80
	Total axes		3
Accuracy	Positioning accuracy	mm	±0.005/300
	Repositioning accuracy	mm	±0.003/300
Spindle	Spindle taper		BT30-ø100
	Spindle speed	rpm	15000/20000
	Spindle drive type		direct
	Spindle center to column	mm	420
	Spindle end face to work table	mm	150-450
Table	Table size	mm	700×420
	Table load	kg	250
	T-slots	mm	3-14×125
Guide rail	X/Y/Z axis ball screw	mm	2816/2816/3216
	X/Y/Z axis guide rail type		linear
Tool magazine	Number of tools	T	21
	Tool length/weight		250mm/3kg
	Tool diameter (full/adjacent empty)	mm	ø60-ø80
Motor power	Spindle motor	kw	5.5
	X/Y/Z axis servo motor	kw	1.5/1.5/3
	Coolant pump motor	w	450
Feed	Rapid feed	m/min	48/48/48
	Cutting feed	m/min	10/10/10
Others	Power	kva	15
	Air pressure	kg/cm2	6
	Dimensions	mm	1950×2257×2900
	Weight	T	3.2

More products

Specification	Unit	T-640	T-640S	T-740	T-850	T-1000	T-1300	T-1600	T-2500
Three-axis travel (X/Y/Z)	mm	600/400/300	600/400/300	700/400/350	800/500/330	1000/500/330	1300/650/450	1570/550/425	2500/400/400
Table size	mm	700×420	700×420	800×420	1000×500	1100×500	1400×600	1700×420	2500×450
Table load	kg	250	250	300	350	400	500	550	600
T-slots	mm	3-14×125	3-14×125	3-14×125	5-18×100	3-14×125	5-18×100	3-14×125	4-14×100
System		Fanuc Siemens Syntec Mitsubishi	Fanuc Siemens Syntec Mitsubishi	Fanuc Siemens Syntec Mitsubishi	Fanuc Siemens Syntec Mitsubishi	Fanuc Siemens Syntec Mitsubishi	Fanuc Siemens Syntec Mitsubishi	Fanuc Siemens Syntec Mitsubishi	Fanuc Siemens Syntec Mitsubishi
Spindle speed	rpm	15000 20000	15000 20000 24000	20000	20000	15000 20000	15000 20000 24000	15000 20000 24000	15000 20000 24000
Spindle taper		BT30	BT30	BT30	BT30	BT30	BT30	BT30/BT40	BT30/BT40
Spindle center to column	mm	420	467	445	546	550	705	420	420
Spindle end face to work table	mm	150-450	170-470	145-495	150-480	150-480	150-600	160-585	120-520
Spindle motor power	kw	5.5	5.5	5.5	5.5	5.5	5.5	5.5/7.5	5.5/7.5
Rapid feed	m/min	48/48/48	48/48/48	48/48/48	48/48/48	36/36/36	36/36/36	26/36/36	26/36/36
Cutting feed	m/min	10/10/10	10/10/10	10/10/10	10/10/10	10/10/10	10/10/10	10/10/10	10/10/10
Positioning accuracy	mm	±0.005/300	±0.005/300	±0.005/300	±0.005/300	±0.005/300	±0.005/300	±0.005/300	±0.005/300
Repositioning accuracy	mm	±0.003/300	±0.003/300	±0.003/300	±0.003/300	±0.003/300	±0.003/300	±0.003/300	±0.003/300

Company Profile
FAQ
Q1:What's your main products of your company?
A1:We manufacture all kinds of CNC machine tools ,such as Vertical Machine Center, Horizontal Machine Center, 5 axis Machine Center, Gantry Machine Center, Engraving Machine Center.
Q2:How can I choose the most suitable machines ?
A2:If you are the factory, please tell us your specification request or workpiece drawing, we will suggest the suitable model for you.
If you are the trading company, please tell us your customer's request or we can introduce various models of our company.
Q3:Where is our factory located? Can I visit there?
A3:Our factory is located in Dongguan City, Guangdong Province, China. You are warmly welcome to visit us.
Q4:How is the warranty?
A4:One year.We will do our best to serviced.
Q5:How long is the delivery time for our products?
A5:Twenty days to one month.
Q6:How about your quality?
A6:We have approved the ISO9001:2015 Quality management system and CE European safety standards. Our products are exported to Russia, Vietnam and other countries.
Q7:What is the package?
A7:The machine is by waterproof cloth to covered. And a packed by standard exported wooden case. It is very safety for oversea transportation.
Q8:What's the Payment Terms ?
A8:T/T,30% initial payment when order,70% balance payment before shipment; Irrevocable LC. Other way can discuss according to different situation.

---
